WN Excavator 2003

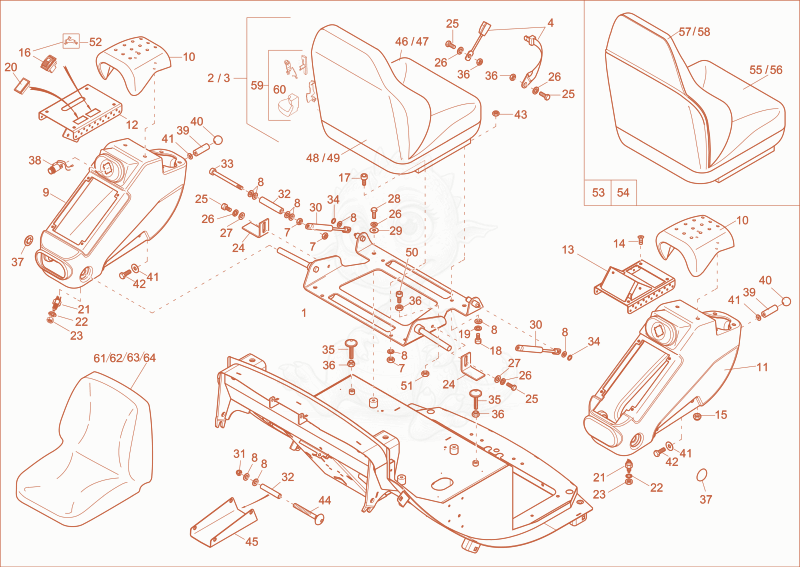

2003 drivers seat Diagram

Exploded parts diagram of the drivers seat of a Wacker Neuson 2003, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000146691Not stocked
    console shiftlever support×1
  • 21000144772Not stocked
    drivers seat×1
  • 31000144771Not stocked
    drivers seat×1
  • 41000144773Not stocked
    safety belt×1
  • 51000049219Not stocked
    washer×2
  • 61000015343Not stocked
    hex screw×4
  • 71000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×6
  • 81000015431Not stocked
    washer×12
  • 91000066190Not stocked
    controllever carrier×1
  • 101000068894Not stocked
    arm rest×2
  • 111000066191Not stocked
    controllever carrier×1
  • 121000102877
    $591.43
    console instruments - 1000102877×1
  • 131000066169Not stocked
    console instruments×1
  • 141000085554
    $0.65
    countersunk screw - 1000085554×8
  • 151000082590
    $0.78
    lock nut - 1000082590×8
  • 161000069022
    $39.06
    switch accelerated speed - 1000069022×1
  • 171000019593Not stocked
    cheese head screw×2
  • 181000085495
    $0.07
    cheese head screw M 8x16-8.8 A2C - 1000085495×2
  • 191000015437Not stocked
    lock washer×2
  • 201000027006Not stocked
    blind cover×1
  • 211000254987
    $21.23
    MICRO SWITCH - 1000254987×2
  • 221000082683
    $0.12
    EDGED DISC - 1000082683×2
  • 231000082589
    $1.26
    hexagon nut - 1000082589×2
  • 241000066148Not stocked
    shift angle×2
  • 251000013009Not stocked
    hex screw×2
  • 261000015438Not stocked
    lock washer×8
  • 271000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×2
  • 281000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
  • 291000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 301000248477
    $40.24
    gas strut - 1000248477×2
  • 311000015414Not stocked
    hexagon nut×2
  • 321000099251
    $3.01
    pipe - 1000099251×4
  • 331000099331
    $0.42
    cheese head screw - 1000099331×2
  • 341000019497Not stocked
    quick fastener×2
  • 351000066513Not stocked
    height adjuster×2
  • 361000015407Not stocked
    hexagon nut×5
  • 371000002895Not stocked
    clamp cap×2
  • 381000069027Not stocked
    cigaret lighter×1
  • 391000003904Not stocked
    handle rod×2
  • 401000015428Not stocked
    ball button×2
  • 411000015454Not stocked
    washer×4
  • 421000015401Not stocked
    hex screw×2
  • 431000013021Not stocked
    hexagon nut×2
  • 441000114234
    $4.10
    FLAT HEAD SCREW - 1000114234×2
  • 451000099246
    $39.16
    reinforce sheet - 1000099246×2
  • 461000064512Not stocked
    seat upholstery×1
  • 471000084941
    $121.82
    Seatupholstery 1000084941×1
  • 481000064519Not stocked
    back cushion×1
  • 491000084942
    $157.68
    back cushion - 1000084942×1
  • 501000048178Not stocked
    cheese head screw×1
  • 511000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×1
  • 521000071885Not stocked
    symbol high speed×1
  • 531000068901Not stocked
    drivers seat×1
  • 541000068972Not stocked
    drivers seat×1
  • 551000068964Not stocked
    seat upholstery×1
  • 561000084941
    $121.82
    Seatupholstery 1000084941×1
  • 571000115927
    $272.40
    Backcushion 1000115927×1
  • 581000068979
    $320.29
    BACK CUSHION - 1000068979×1
  • 591000084955
    $43.54
    handle - 1000084955×1
  • 601000113912
    $22.00
    handle - 1000113912×1
  • 611000325694Not stocked
    slip-cover×1
  • 621000325664Not stocked
    slip-cover×1
  • 631000325665Not stocked
    slip-cover×1
  • 641000325667Not stocked
    slip-cover×1
