WN Excavator 2003

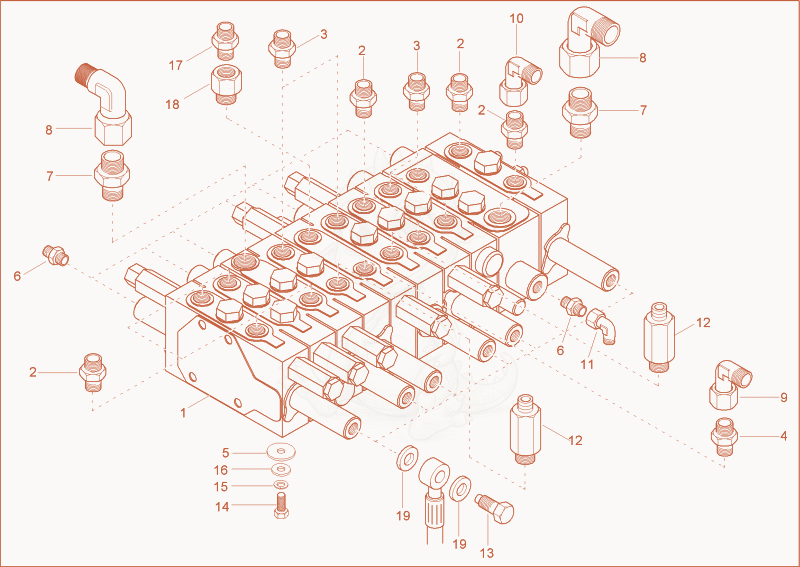

2003 CONTROL VALVE 1 Diagram

Exploded parts diagram of the CONTROL VALVE 1 of a Wacker Neuson 2003, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000066732Not stocked
    valve block×1
  • 21000083024
    $4.01
    GE10LR3/8OROMDA3C - 1000083024×8
  • 31000082969
    $4.07
    GE12LR3/8OROMDA3C - 1000082969×5
  • 41000083023
    $8.35
    GE15LR3/8OROMDA3C - 1000083023×1
  • 51000156073
    $6.56
    rubber shock absorber - 1000156073×3
  • 61000082963
    $3.67
    GE08LR1/4OROMDA3C - 1000082963×7
  • 71000083048
    $6.80
    GE18LR1/2OROMDA3C - 1000083048×2
  • 81000015513Not stocked
    screw joint×1
  • 91000015512Not stocked
    screw joint×1
  • 101000015510Not stocked
    screw joint×1
  • 111000000542
    $11.08
    EW08LOMD - 1000000542×1
  • 121000069309Not stocked
    connection piece×1
  • 131000083020
    $5.70
    banjo bolt G1/4" - 1000083020×6
  • 141000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×3
  • 151000015438Not stocked
    lock washer×3
  • 161000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×3
  • 171000015533Not stocked
    screw joint×1
  • 181000065865
    $9.17
    EXTENSION - 1000065865×2
  • 191000083485
    $2.64
    copper ring - 1000083485×12
