DV100

DV100 wiring harness STVO option Diagram

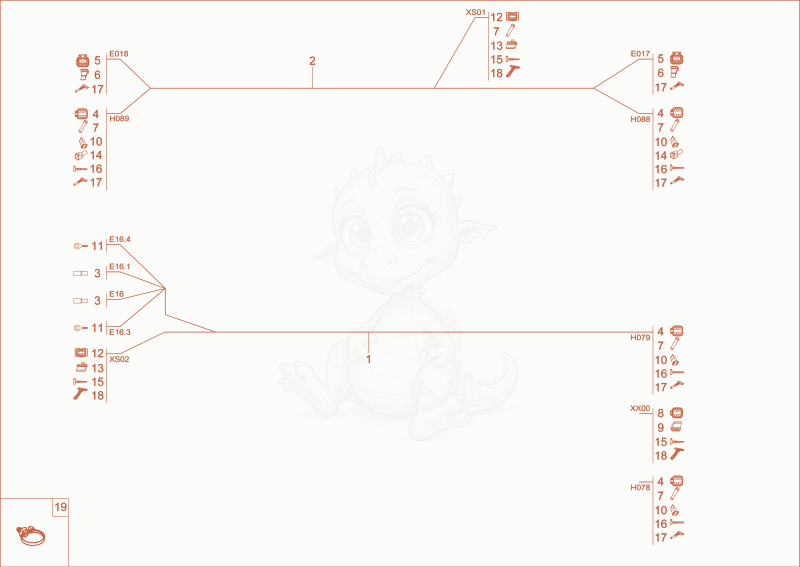

Exploded parts diagram of the wiring harness STVO option of a Wacker Neuson DV100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000405453Not stocked
    wiring harness×1
  • 21000405455Not stocked
    wiring harness×1
  • 31000027384Not stocked
    round socket sleeve×2
  • 41000027431Not stocked
    bushing housing×4
  • 51000027438Not stocked
    bushing housing×2
  • 61000027442Not stocked
    wedge×2
  • 71000030446Not stocked
    plug×5
  • 81000085023
    $9.14
    Pin housing - 1000085023×1
  • 91000085026
    $1.15
    locking pin - 1000085026×1
  • 101000085032
    $1.15
    plug locking - 1000085032×4
  • 111000096859
    $1.08
    CABLE LUG - 1000096859×2
  • 121000105117
    $53.23
    Pin housing - 1000105117×2
  • 131000105118
    $1.19
    wedge - 1000105118×2
  • 141000150148
    $12.94
    Rubber cap - 1000150148×2
  • 151000309282Not stocked
    pin contact×6
  • 161000309284Not stocked
    bushing contact×4
  • 171000359612Not stocked
    plug connection×20
  • 181000362407Not stocked
    pin contact×15
  • 191000375997Not stocked
    fixing bracket×5
