DV100

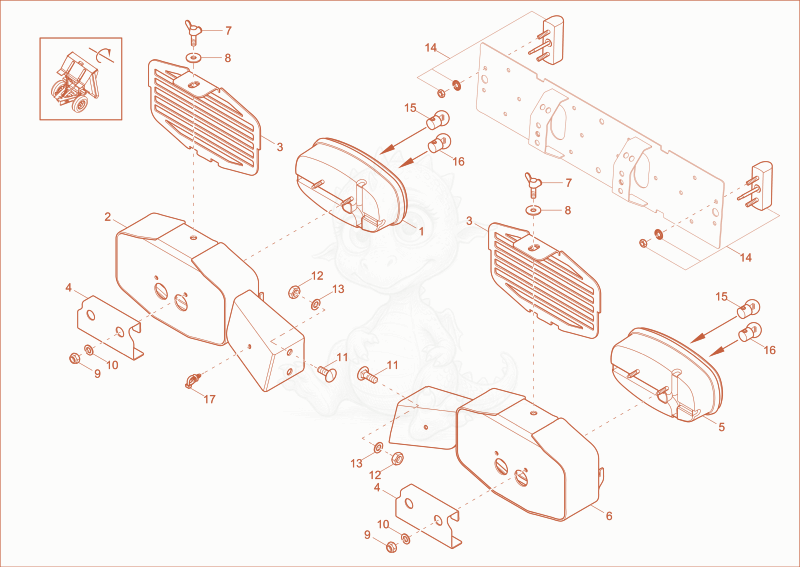

DV100 lighting (option) Diagram

Exploded parts diagram of the lighting (option) of a Wacker Neuson DV100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000148543
    $63.06
    Rear light - 1000148543×1
  • 21000405666
    $357.37
    bracket - 1000405666×1
  • 31000402727
    $107.36
    screen - 1000402727×2
  • 41000404253Not stocked
    protection plate×2
  • 51000148542
    $63.06
    Rear light - 1000148542×1
  • 61000405668
    $357.37
    bracket - 1000405668×1
  • 71000048699Not stocked
    thumb screw×2
  • 81000013027Not stocked
    washer×2
  • 91000357533Not stocked
    hexagon nut×4
  • 101000015430Not stocked
    u-washer×4
  • 111000299982
    $0.58
    door strap screw - 1000299982×4
  • 121000015407Not stocked
    hexagon nut×4
  • 131000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 141000117390
    $16.21
    NUMBER PLATE LIGHT - 1000117390×2
  • 151000096853
    $2.87
    bulb - 1000096853×2
  • 161000081855
    $1.71
    bulb - 1000081855×2
  • 171000090083
    $2.13
    Cable strap T80IFT6 - 1000090083×2
