DV100

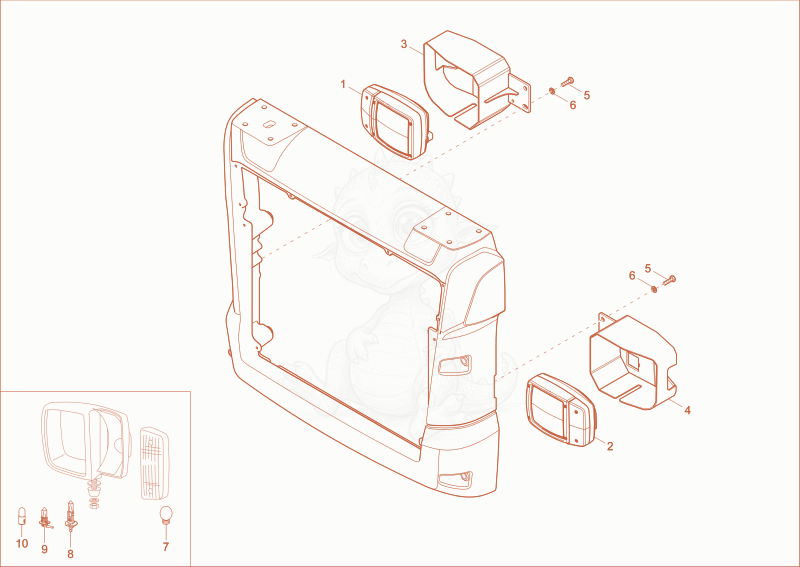

DV100 lighting Diagram

Exploded parts diagram of the lighting of a Wacker Neuson DV100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000378810Not stocked
    main headlight×1
  • 21000378809
    $202.27
    main headlight - 1000378809×1
  • 31000420806Not stocked
    bracket×1
  • 41000420805Not stocked
    bracket×1
  • 51000015364Not stocked
    hex screw×4
  • 61000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 71000050449
    $5.52
    bulb - 1000050449×4
  • 81000109712
    $11.39
    bulb - 1000109712×2
  • 91000015293Not stocked
    bulb×2
  • 101000001519
    $1.48
    bulb - 1000001519×2
