DV100

DV100 tilt ram Diagram

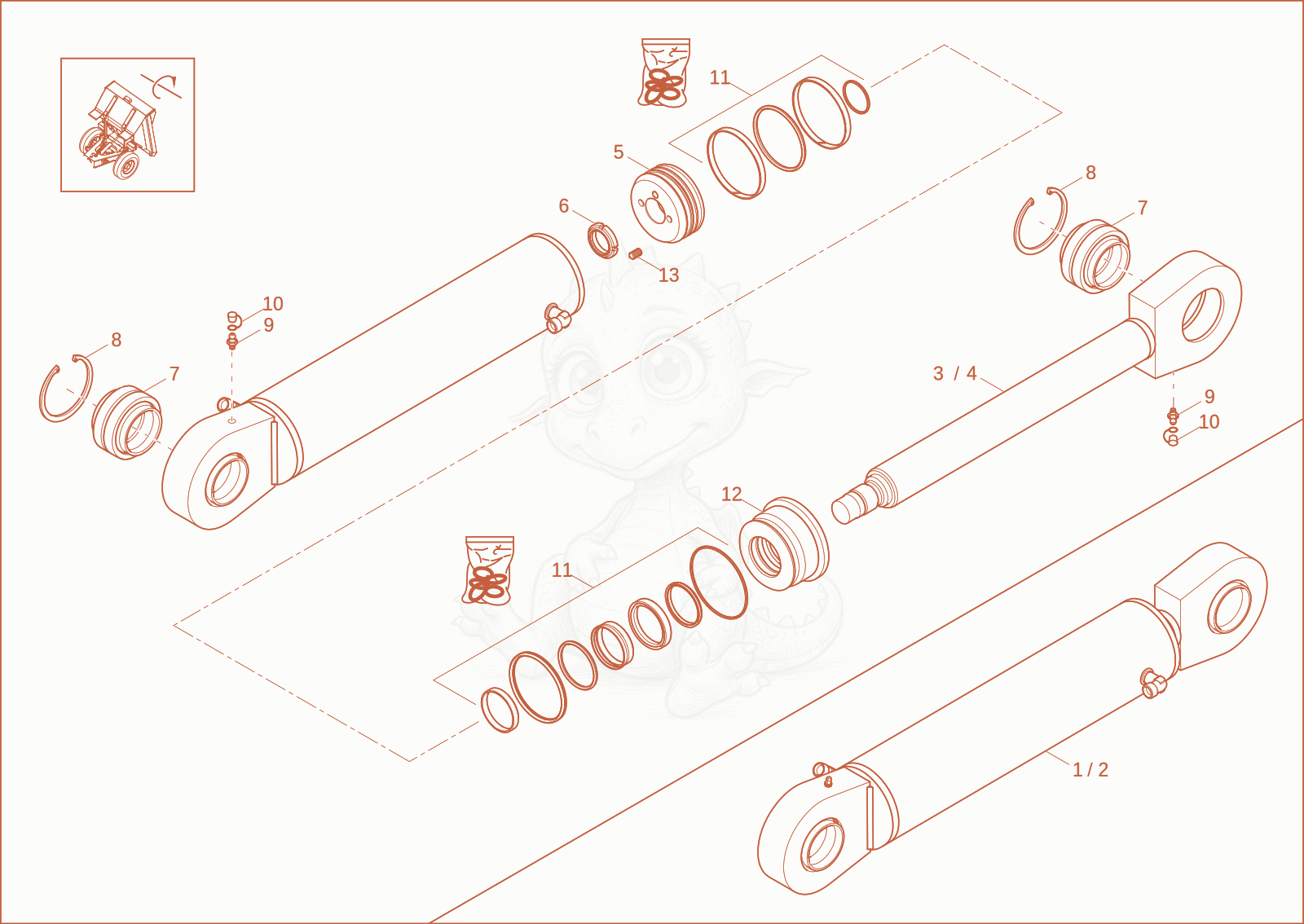

Exploded parts diagram of the tilt ram of a Wacker Neuson DV100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000396041Not stocked
    tilt ram×1
  • 21000458351
    $2,326.94
    tilt cylinder D24/D26-x2/x3F - 1000458351×1
  • 31000407609Not stocked
    piston rod×1
  • 41000478416
    $1,370.04
    PISTON ROD - 1000478416×1
  • 51000407614
    $200.76
    piston - 1000407614×1
  • 61000407627
    $57.51
    nut - 1000407627×1
  • 71000407633Not stocked
    pivoting bearing×2
  • 81000408060
    $18.37
    ring - 1000408060×2
  • 91000015476Not stocked
    grease nipple×2
  • 101000015480Not stocked
    cap grease nipple×2
  • 111000407603Not stocked
    seal kit×1
  • 121000407621
    $362.66
    bushing - 1000407621×1
  • 131000478417
    $7.83
    thread pin - 1000478417×1
