DV100

DV100 CABIN FRAME (OPTION) Diagram

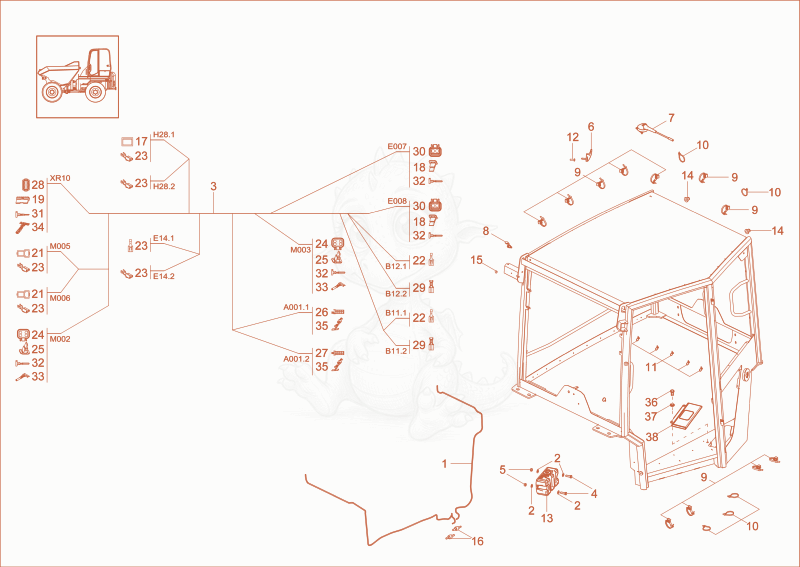

Exploded parts diagram of the CABIN FRAME (OPTION) of a Wacker Neuson DV100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000116965
    $7.54
    water hose - 1000116965×6
  • 21000094966
    $0.65
    washer M6,4-DIN134 - 1000094966×4
  • 31000405457Not stocked
    wiring harness×1
  • 41000018400Not stocked
    hex screw×2
  • 51000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
  • 61000124822
    $19.56
    cloth hook - 1000124822×1
  • 71000364750
    $83.93
    antenna - 1000364750×1
  • 81000002902Not stocked
    socket×1
  • 91000399431Not stocked
    mounting×11
  • 101000094770
    $3.33
    CABLE STRAP - 1000094770×6
  • 111000409709Not stocked
    mounting×6
  • 121000124798
    $2.61
    ovalhead screw - 1000124798×1
  • 131000213417
    $217.65
    WINDSCREEN WASHER RESE - 1000213417×1
  • 141000124843
    $2.59
    cable sleeve - 1000124843×2
  • 151000503916Not stocked
    blind plug×1
  • 161000068914Not stocked
    non return valve×2
  • 171000027435Not stocked
    insulating sleeve×1
  • 181000027442Not stocked
    wedge×2
  • 191000085012
    $13.79
    LOCKING PIN - 1000085012×1
  • 201000092494
    $2.31
    plug sleeve - 1000092494×1
  • 211000095323
    $3.39
    plug sleeve housing - 1000095323×2
  • 221000095369
    $2.07
    plug sleeve - 1000095369×2
  • 231000095370
    $0.66
    plug sleeve - 1000095370×7
  • 241000104286
    $11.39
    bushing housing - 1000104286×2
  • 251000104287
    $0.99
    wedge - 1000104287×2
  • 261000104902
    $18.69
    CONTACT-HOUSING - 1000104902×1
  • 271000104903
    $4.90
    CONTACT-HOUSING - 1000104903×1
  • 281000105124
    $36.42
    pin housing - 1000105124×1
  • 291000106792
    $0.44
    plug sleeve - 1000106792×2
  • 301000270365
    $6.40
    Plug Deutsch - 1000270365×2
  • 311000309282Not stocked
    pin contact×4
  • 321000309284Not stocked
    bushing contact×6
  • 331000359612Not stocked
    plug connection×6
  • 341000362407Not stocked
    pin contact×8
  • 351000362527Not stocked
    bushing contact×7
  • 361000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
  • 371000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
  • 381000387209
    $77.25
    COVER - 1000387209×1
