DV100

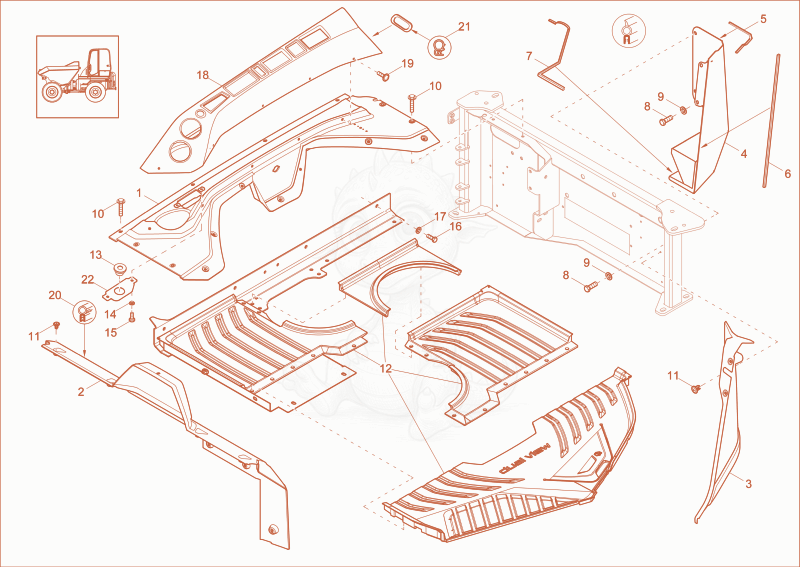

DV100 COVERING (Option) Diagram

Exploded parts diagram of the COVERING (Option) of a Wacker Neuson DV100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000404382Not stocked
    side trim×1
  • 21000404024
    $518.27
    trim - 1000404024×1
  • 31000403074Not stocked
    side trim×1
  • 41000404301Not stocked
    cabine cover×1
  • 51000017845Not stocked
    rubber profile×0.28
  • 61000017845Not stocked
    rubber profile×0.57
  • 71000017845Not stocked
    rubber profile×0.65
  • 81000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×4
  • 91000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 101000392495Not stocked
    screw×8
  • 111000376331Not stocked
    screw×17
  • 121000395515Not stocked
    foot mat×1
  • 131000387428
    $10.62
    sleeve - 1000387428×1
  • 141000015448Not stocked
    washer×2
  • 151000015343Not stocked
    hex screw×2
  • 161000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
  • 171000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×4
  • 181000386719Not stocked
    air channel×1
  • 191000326518Not stocked
    flat head screw×9
  • 201000097922
    $19.67
    rubber profile - 1000097922×0.39
  • 211000098198
    $19.56
    RUBBER PROFILE - 1000098198×0.38
  • 221000397149
    $98.54
    plate - 1000397149×1
