DV100

DV100 front frame Diagram

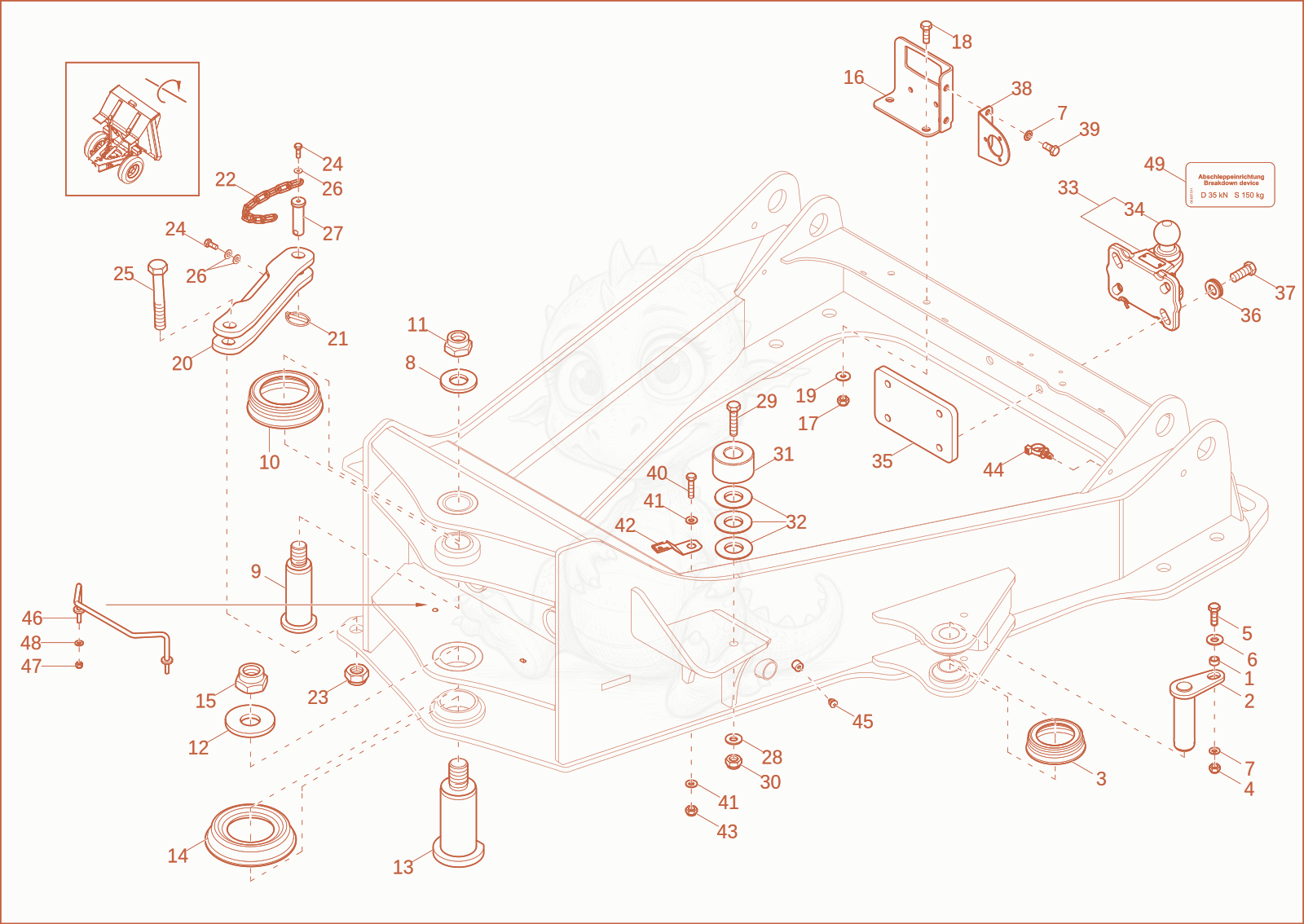

Exploded parts diagram of the front frame of a Wacker Neuson DV100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000154698
    $4.06
    WASHER - 1000154698×1
  • 21000383449
    $77.22
    pin - 1000383449×1
  • 31000351711
    $12.88
    bearing - 1000351711×1
  • 41000357535Not stocked
    hexagon nut×1
  • 51000085412
    $0.87
    6-Point screw M10x40-8.8 A2C-DIN933 - 1000085412×1
  • 61000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×1
  • 71000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×3
  • 81000403569Not stocked
    washer×1
  • 91000403568
    $155.58
    PIN - 1000403568×1
  • 101000403241
    $49.01
    seal - 1000403241×1
  • 111000388900Not stocked
    nut×1
  • 121000383302Not stocked
    washer×1
  • 131000383301
    $225.03
    PIN - 1000383301×1
  • 141000350993
    $19.37
    seal - 1000350993×1
  • 151000383566
    $9.54
    nut - 1000383566×1
  • 161000398668
    $60.09
    bracket - 1000398668×1
  • 171000357536Not stocked
    hexagon nut×2
  • 181000085404
    $0.93
    hex screw - 1000085404×2
  • 191000049219Not stocked
    washer×2
  • 201000383427Not stocked
    buckle support×1
  • 211000015457Not stocked
    cotter pin×1
  • 221000097224
    $40.66
    CHAIN - 1000097224×1
  • 231000386501
    $4.37
    nut - 1000386501×1
  • 241000018400Not stocked
    hex screw×2
  • 251000396926Not stocked
    hex screw×1
  • 261000095343
    $1.42
    washer A 6,4 St A2C DIN9021 - 1000095343×3
  • 271000383448
    $18.51
    pin - 1000383448×1
  • 281000021001
    $0.89
    WASHER - 1000021001×2
  • 291000047713Not stocked
    hex screw×2
  • 301000350326Not stocked
    hexagon nut×2
  • 311000114225
    $64.21
    bucket support - 1000114225×2
  • 321000078491
    $3.36
    washer - 1000078491×3
  • 331000299920
    $309.56
    Trailercoupling 1000299920×1
  • 341000360212Not stocked
    ball pin×1
  • 351000395695
    $232.96
    PLATE - 1000395695×1
  • 361000015451Not stocked
    northlock disc×4
  • 371000085430
    $1.76
    HEX SCREW M16x50-10.9 DACRO-DIN933 - 1000085430×4
  • 381000398669
    $44.30
    bracket - 1000398669×1
  • 391000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
  • 401000085390
    $0.83
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×1
  • 411000015431Not stocked
    washer×2
  • 421000290779
    $21.55
    Clip mounting - 1000290779×1
  • 431000357534Not stocked
    hexagon nut×1
  • 441000322839Not stocked
    fixing bracket×3
  • 451000288011
    $1.09
    plug M8 - 1000288011×1
  • 461000455781
    $36.18
    Holder - 1000455781×1
  • 471000357534Not stocked
    hexagon nut×2
  • 481000015448Not stocked
    washer×2
  • 491000526104
    $47.66
    STICKER - 1000526104×1
