DV100

DV100 fuel tank Diagram

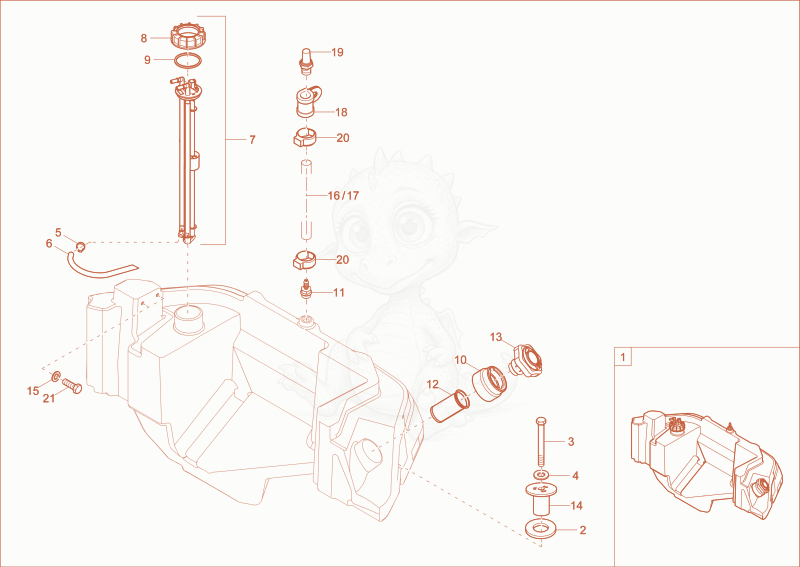

Exploded parts diagram of the fuel tank of a Wacker Neuson DV100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000370335Not stocked
    fuel tank×1
  • 21000322036Not stocked
    rubber disc×3
  • 31000085332
    $1.31
    HEX SCREW - 1000085332×3
  • 41000049219Not stocked
    washer×3
  • 51000222603
    $2.41
    clamp - 1000222603×1
  • 61000397950Not stocked
    suction hose×1
  • 71000404699Not stocked
    Suction lance×1
  • 81000240603
    $19.09
    union nut - 1000240603×1
  • 91000289799
    $5.83
    seal ring - 1000289799×1
  • 101000262592
    $25.08
    end piece - 1000262592×1
  • 111000158566
    $7.26
    GES08R3/8"OR - 1000158566×1
  • 121000267866
    $20.53
    FILING STRAINER - 1000267866×1
  • 131000504455Not stocked
    filler cap×1
  • 141000403917
    $58.72
    Fastening - 1000403917×3
  • 151000094962
    $0.04
    washer A 5,3 A2C DIN125 - 1000094962×2
  • 161000411932Not stocked
    fuel line×0.65
  • 171000411932Not stocked
    fuel line×0.61
  • 181000223491
    $2.34
    PIPE CLAMP - 1000223491×1
  • 191000069386Not stocked
    sintermetal filter×1
  • 201000267809
    $3.22
    clamp hose 15.3 - 1000267809×2
  • 211000085377
    $0.68
    hex screw - 1000085377×2
