DV100

DV100 frame drive unit Diagram

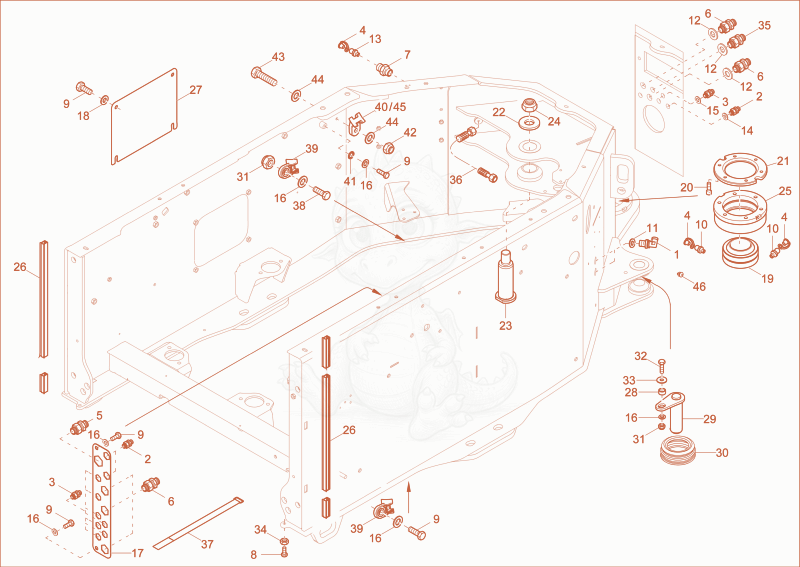

Exploded parts diagram of the frame drive unit of a Wacker Neuson DV100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000028331Not stocked
    screw joint×2
  • 21000085076
    $4.95
    SV10-L - 1000085076×3
  • 31000085075
    $4.46
    SV08-L - 1000085075×8
  • 41000015480Not stocked
    cap grease nipple×3
  • 51000015563Not stocked
    screw joint×1
  • 61000015550Not stocked
    lock screw connection×5
  • 71000015501
    $2.10
    GE06LMEDOMDA3C - 1000015501×1
  • 81000085438
    $1.16
    6-piont screw M12x50 - 1000085438×2
  • 91000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×9
  • 101000015476Not stocked
    grease nipple×1
  • 111000151414
    $1.81
    WASHER - 1000151414×2
  • 121000082620
    $0.08
    washer 23 - 1000082620×3
  • 131000082805
    $0.95
    grease nipple M10x1 - 1000082805×1
  • 141000021001
    $0.89
    WASHER - 1000021001×1
  • 151000019126Not stocked
    u-washer×1
  • 161000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×9
  • 171000389512
    $23.43
    PLATE - 1000389512×1
  • 181000094974
    $0.70
    washer M10-DIN134 - 1000094974×4
  • 191000224984
    $148.46
    Pivotingbearing 1000224984×1
  • 201000085504
    $1.05
    cheese head screw - 1000085504×6
  • 211000383742
    $77.55
    cover - 1000383742×1
  • 221000403569Not stocked
    washer×1
  • 231000403568
    $155.58
    PIN - 1000403568×1
  • 241000388900Not stocked
    nut×1
  • 251000438150Not stocked
    bearingseat×1
  • 261000097930
    $26.59
    RUBBER PROFILE - 1000097930×1.2
  • 271000402265
    $203.04
    cover - 1000402265×1
  • 281000154698
    $4.06
    WASHER - 1000154698×1
  • 291000383449
    $77.22
    pin - 1000383449×1
  • 301000351711
    $12.88
    bearing - 1000351711×1
  • 311000357535Not stocked
    hexagon nut×5
  • 321000085412
    $0.87
    6-Point screw M10x40-8.8 A2C-DIN933 - 1000085412×1
  • 331000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×1
  • 341000174482
    $2.27
    HEXAGON NUT - 1000174482×2
  • 351000021041Not stocked
    screw joint×1
  • 361000404347Not stocked
    Hose×1
  • 371000365805Not stocked
    lock strap×1
  • 381000015364Not stocked
    hex screw×6
  • 391000373433Not stocked
    sockets×8
  • 401000378385Not stocked
    sockets×2
  • 411000095354
    $0.03
    Lock washer DIN6797 A10,5 - 1000095354×1
  • 421000357534Not stocked
    hexagon nut×2
  • 431000085390
    $0.83
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×2
  • 441000015448Not stocked
    washer×4
  • 451000282736
    $11.39
    sockets - 1000282736×2
  • 461000288011
    $1.09
    plug M8 - 1000288011×1
