DW60 Dumper

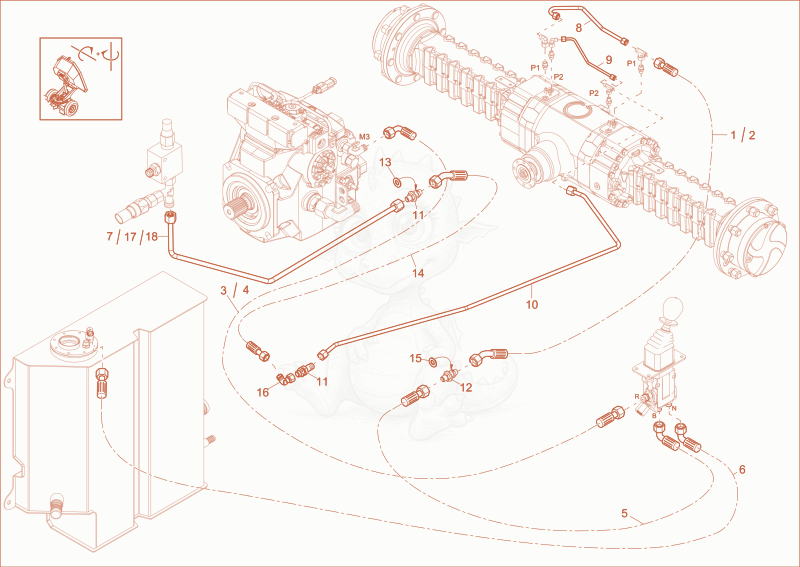

DW60 BRAKE INSTALLTION (Option) Diagram

Exploded parts diagram of the BRAKE INSTALLTION (Option) of a Wacker Neuson DW60, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000331472
    $89.88
    SLHYDR 2SCP10 PN12 45 PN12 0 L1950 D0 - 1000331472×1
  • 21000373536Not stocked
    Hose×1
  • 31000331441
    $56.83
    SLHYDR 1SC 6,0PN8 90 PN8 0 L1850 0 - 1000331441×1
  • 41000349521Not stocked
    Hose×1
  • 51000331449Not stocked
    Hose×1
  • 61000331445Not stocked
    Hose×1
  • 71000333228Not stocked
    brake line×1
  • 81000328958Not stocked
    brake line×1
  • 91000328956Not stocked
    brake line×1
  • 101000328957Not stocked
    brake line×1
  • 111000085075
    $4.46
    SV08-L - 1000085075×2
  • 121000021041Not stocked
    screw joint×1
  • 131000019126Not stocked
    u-washer×1
  • 141000331452Not stocked
    Hose×1
  • 151000082625
    $0.83
    washer 19 - 1000082625×1
  • 161000187907
    $30.16
    EV08LA3C-EO45° - 1000187907×1
  • 171000353351Not stocked
    brake line×1
  • 181000384375Not stocked
    brake line×1
