DW60 Dumper

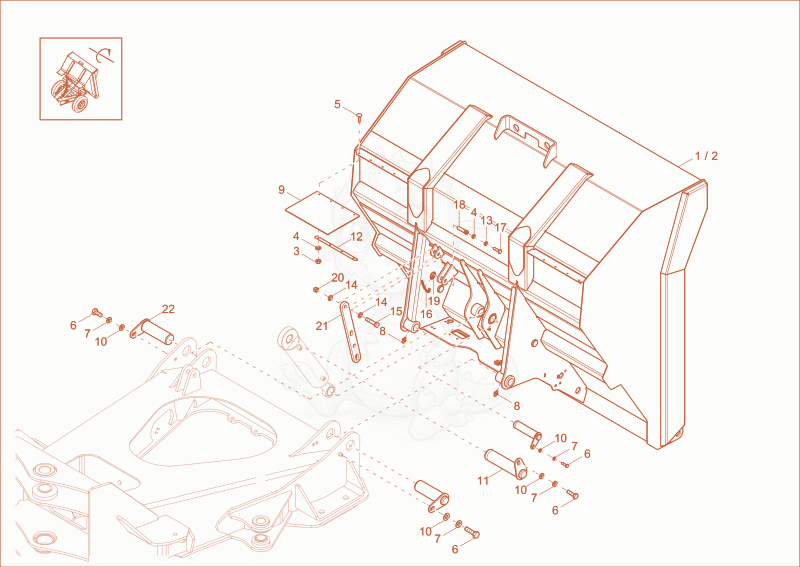

DW60 skip Diagram

Exploded parts diagram of the skip of a Wacker Neuson DW60, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000331494Not stocked
    skip×1
  • 21000331496Not stocked
    skip×1
  • 31000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×8
  • 41000015430Not stocked
    u-washer×9
  • 51000299983
    $1.16
    door strap screw - 1000299983×8
  • 61000015364Not stocked
    hex screw×4
  • 71000015438Not stocked
    lock washer×4
  • 81000015476Not stocked
    grease nipple×2
  • 91000001638Not stocked
    dust catch×2
  • 101000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 111000325043Not stocked
    pin tiltram×2
  • 121000314169Not stocked
    angle bracket×2
  • 131000015436Not stocked
    lock washer×1
  • 141000015440Not stocked
    u-washer×2
  • 151000085345
    $3.36
    HEX SCREW - 1000085345×1
  • 161000097224
    $40.66
    CHAIN - 1000097224×0.2
  • 171000085382
    $0.70
    HEX SCREW - 1000085382×1
  • 181000297201
    $20.12
    pin - 1000297201×1
  • 191000015457Not stocked
    cotter pin×1
  • 201000018412Not stocked
    hexagon nut×1
  • 211000324321Not stocked
    maintenance support×1
  • 221000325044Not stocked
    pin×2
