DW60 Dumper

DW60 skip (option) Diagram

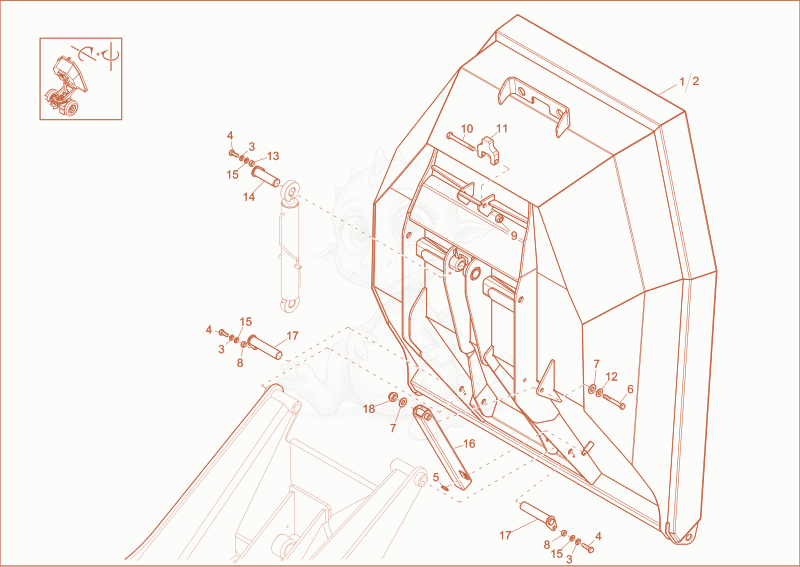

Exploded parts diagram of the skip (option) of a Wacker Neuson DW60, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000331501Not stocked
    skip×1
  • 21000331502Not stocked
    skip×1
  • 31000015364Not stocked
    hex screw×3
  • 41000015364Not stocked
    hex screw×3
  • 51000015457Not stocked
    cotter pin×1
  • 61000047531Not stocked
    hex screw×1
  • 71000282641
    $6.71
    WASHER - 1000282641×2
  • 81000151025
    $3.03
    washer 18/12x5 - 1000151025×2
  • 91000049089Not stocked
    hexagon nut×1
  • 101000163520
    $9.16
    hex screw - 1000163520×1
  • 111000166855
    $122.74
    Swivellock 1000166855×1
  • 121000157110
    $1.53
    lock washer - 1000157110×1
  • 131000325117
    $3.53
    washer - 1000325117×1
  • 141000325011Not stocked
    pin tiltram×1
  • 151000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×3
  • 161000329010Not stocked
    maintenance support×1
  • 171000324935Not stocked
    pin×2
  • 181000018412Not stocked
    hexagon nut×1
