DW60 Dumper

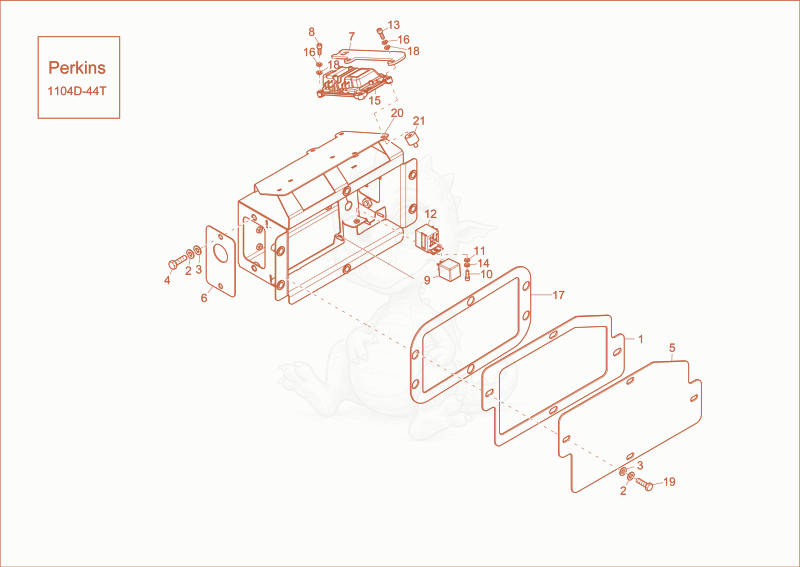

DW60 RELAY BOX 1 Diagram

Exploded parts diagram of the RELAY BOX 1 of a Wacker Neuson DW60, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000299056
    $24.56
    seal - 1000299056×1
  • 21000015438Not stocked
    lock washer×10
  • 31000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×10
  • 41000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
  • 51000311990
    $121.13
    cover - 1000311990×1
  • 61000284366
    $19.83
    cover - 1000284366×1
  • 71000328596Not stocked
    plate×1
  • 81000085455
    $0.81
    allen screw M6x16-8.8 A2C - 1000085455×2
  • 91000353649Not stocked
    relay×1
  • 101000082474
    $0.80
    allen screw M4x16-8.8 A2C-DIN912 - 1000082474×1
  • 111000094961
    $1.71
    washer 4,3 DIN125 - 1000094961×1
  • 121000026997
    $8.05
    SOCKETS - 1000026997×1
  • 131000085456
    $0.05
    allen screw M6x20-8.8 A2C-DIN912 - 1000085456×2
  • 141000082612
    $0.65
    lock washer - 1000082612×1
  • 151000515318
    $874.62
    Controller TTC30 - 1000515318×1
  • 161000015436Not stocked
    lock washer×4
  • 171000330144
    $48.17
    Seal - 1000330144×1
  • 181000015430Not stocked
    u-washer×4
  • 191000015348Not stocked
    hex screw×6
  • 201000332594Not stocked
    RELAY BOX×1
  • 211000328578Not stocked
    rubber buffer×4
