DW60 Dumper

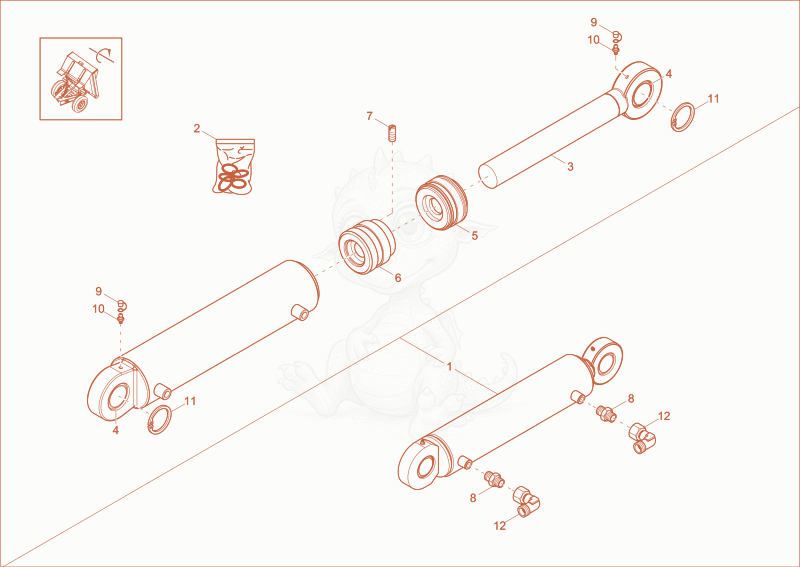

DW60 tilt ram Diagram

Exploded parts diagram of the tilt ram of a Wacker Neuson DW60, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000174244
    $4,302.45
    Tiltramdw60Fserta 1000174244×1
  • 21000269556
    $176.29
    seal kit - 1000269556×1
  • 31000269560
    $1,755.23
    Pistonrod 1000269560×1
  • 41000269589
    $108.68
    pivoting bearing - 1000269589×2
  • 51000269583
    $1,077.37
    GUIDE BUSH - 1000269583×1
  • 61000269585
    $227.63
    Piston 1000269585×1
  • 71000245269
    $128.44
    lock screw - 1000245269×1
  • 81000085058
    $14.06
    GE15LM16X1,5EDOMDA3C - 1000085058×2
  • 91000015480Not stocked
    cap grease nipple×2
  • 101000015476Not stocked
    grease nipple×2
  • 111000269261
    $133.52
    lock ring - 1000269261×2
  • 121000015512Not stocked
    screw joint×2
