DW60 Dumper

DW60 wire harness chassis, engine Diagram

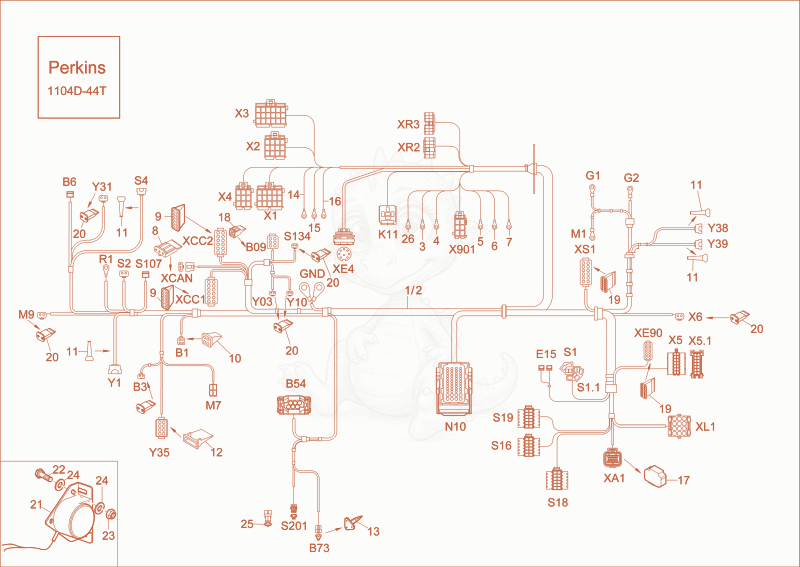

Exploded parts diagram of the wire harness chassis, engine of a Wacker Neuson DW60, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000363217Not stocked
    wiring harness×1
  • 21000400581Not stocked
    main harness×1
  • 31000096859
    $1.08
    CABLE LUG - 1000096859×1
  • 41000096859
    $1.08
    CABLE LUG - 1000096859×1
  • 51000096859
    $1.08
    CABLE LUG - 1000096859×1
  • 61000096859
    $1.08
    CABLE LUG - 1000096859×1
  • 71000096859
    $1.08
    CABLE LUG - 1000096859×1
  • 81000183224
    $1.87
    LOCKING PIN - 1000183224×1
  • 91000148272
    $2.17
    Pin housing - 1000148272×2
  • 101000104287
    $0.99
    wedge - 1000104287×1
  • 111000027466Not stocked
    protecting cap×4
  • 121000105118
    $1.19
    wedge - 1000105118×1
  • 131000027433
    $1.57
    locking - 1000027433×1
  • 141000096859
    $1.08
    CABLE LUG - 1000096859×1
  • 151000096859
    $1.08
    CABLE LUG - 1000096859×1
  • 161000096859
    $1.08
    CABLE LUG - 1000096859×1
  • 171000306996
    $36.29
    bushing - 1000306996×1
  • 181000183227
    $2.77
    LOCKING PIN - 1000183227×1
  • 191000085010
    $1.46
    wedge - 1000085010×1
  • 201000027442Not stocked
    wedge×8
  • 211000362626Not stocked
    option reverse warner×1
  • 221000018400Not stocked
    hex screw×2
  • 231000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
  • 241000092309
    $0.71
    WASHER - 1000092309×4
  • 251000155227
    $2.27
    Pin housing - 1000155227×1
  • 261000099150
    $4.80
    cable lug - 1000099150×1
  • B091000183226
    $9.17
    bushing housing - 1000183226×1
  • B11000104286
    $11.39
    bushing housing - 1000104286×1
  • B31000027438Not stocked
    bushing housing×1
  • B541000105100
    $9.88
    bushing housing - 1000105100×1
  • B61000274535
    $7.98
    hex screw - 1000274535×1
  • B731000027429Not stocked
    housing×1
  • E151000027435Not stocked
    insulating sleeve×1
  • G11000050031Not stocked
    cable lug×1
  • G21000050032Not stocked
    cable lug×1
  • GND1000107754
    $2.77
    cable lug - 1000107754×1
  • K111000026997
    $8.05
    SOCKETS - 1000026997×1
  • M11000139516
    $1.60
    cable lug - 1000139516×1
  • M71000095325
    $2.11
    plug sleeve housing - 1000095325×1
  • M91000270365
    $6.40
    Plug Deutsch - 1000270365×1
  • N101000306993
    $104.58
    PLUG - 1000306993×1
  • R11000096859
    $1.08
    CABLE LUG - 1000096859×1
  • S11000027368Not stocked
    central plug×1
  • S1.11000027386
    $6.47
    PLUG - 1000027386×1
  • S1071000027435Not stocked
    insulating sleeve×1
  • S1341000270365
    $6.40
    Plug Deutsch - 1000270365×1
  • S161000103949
    $5.74
    bushing housing - 1000103949×1
  • S181000103949
    $5.74
    bushing housing - 1000103949×1
  • S191000103949
    $5.74
    bushing housing - 1000103949×1
  • S21000270365
    $6.40
    Plug Deutsch - 1000270365×1
  • S2011000110449
    $2.46
    plug bushing - 1000110449×1
  • S41000027332
    $3.80
    housing - 1000027332×1
  • X11000098960
    $2.84
    bushing housing - 1000098960×1
  • X21000098961
    $3.01
    bushing housing - 1000098961×1
  • X31000099076
    $2.90
    bushing housing - 1000099076×1
  • X41000149340
    $1.87
    Bushing housing - 1000149340×1
  • X51000100971
    $4.24
    bushing housing - 1000100971×1
  • X511000271156
    $7.77
    pin housing - 1000271156×1
  • X61000270365
    $6.40
    Plug Deutsch - 1000270365×1
  • X9011000099201
    $2.87
    bushing housing - 1000099201×1
  • XA11000306995
    $18.27
    PLUG - 1000306995×1
  • XCAN1000183222
    $6.86
    bushing housing - 1000183222×1
  • XCC11000148250
    $29.62
    Pin housing - 1000148250×1
  • XCC21000148271
    $30.88
    Pin housing - 1000148271×1
  • XE41000312071Not stocked
    bushing housing×1
  • XE901000254182
    $29.32
    bushing housing - 1000254182×1
  • XL11000269632
    $6.73
    HOUSING-PLUG - 1000269632×1
  • XR21000101655
    $8.99
    pin housing - 1000101655×1
  • XR31000100618
    $7.48
    Pin housing - 1000100618×1
  • XS11000105122
    $29.32
    bushing housing - 1000105122×1
  • XS21000105117
    $53.23
    Pin housing - 1000105117×1
  • Y031000270365
    $6.40
    Plug Deutsch - 1000270365×1
  • Y11000027332
    $3.80
    housing - 1000027332×1
  • Y101000270365
    $6.40
    Plug Deutsch - 1000270365×1
  • Y311000270365
    $6.40
    Plug Deutsch - 1000270365×1
  • Y381000027332
    $3.80
    housing - 1000027332×1
  • Y391000027332
    $3.80
    housing - 1000027332×1
