ET65

ET65 COOLING SYSTEM Diagram

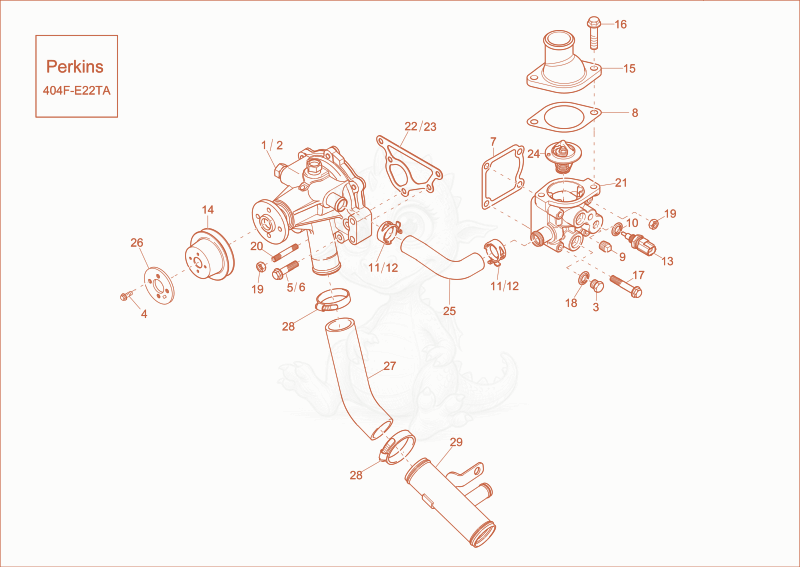

Exploded parts diagram of the COOLING SYSTEM of a Wacker Neuson ET65, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000308142Not stocked
    water pump×1
  • 21000389159Not stocked
    water pump×1
  • 31000389260
    $33.11
    plug - 1000389260×1
  • 41000308571
    $1.17
    screw - 1000308571×4
  • 51000202413
    $2.83
    screw - 1000202413×4
  • 61000088185
    $9.92
    Screw - 1000088185×4
  • 71000200061
    $2.77
    GASKET THERMOSTAT - 1000200061×1
  • 81000200054
    $2.56
    GASKET THERMOSTAT - 1000200054×1
  • 91000308586Not stocked
    lock plug×1
  • 101000199526
    $11.61
    SEAL OIL DRAIN - 1000199526×1
  • 111000389153Not stocked
    hose clamp×2
  • 121000389154Not stocked
    hose clamp×2
  • 131000308147
    $158.39
    Temperature - 1000308147×1
  • 145000217364Not stocked
    PULLEY-WATER PUMP×1
  • 151000244842
    $98.10
    FILLER PIPE - 1000244842×1
  • 161000308605
    $6.45
    SCREW - 1000308605×2
  • 171000244812
    $11.06
    screw - 1000244812×2
  • 181000199443
    $12.66
    seal oil drain - 1000199443×2
  • 191000199519
    $2.01
    Nut - 1000199519×5
  • 201000202586
    $21.58
    stud bolt - 1000202586×1
  • 211000389156Not stocked
    thermostat housing×1
  • 221000244811
    $4.64
    SEAL WATER PUMP - 1000244811×1
  • 231000307074
    $4.64
    Seal - 1000307074×1
  • 241000211107
    $50.74
    Thermostat - 1000211107×1
  • 251000211106
    $28.11
    water hose - 1000211106×1
  • 261000327864
    $19.03
    Spacer - 1000327864×1
  • 271000319807Not stocked
    water hose×1
  • 281000308575
    $9.79
    Clamp - 1000308575×2
  • 291000319806Not stocked
    connection piece×1
