ET65

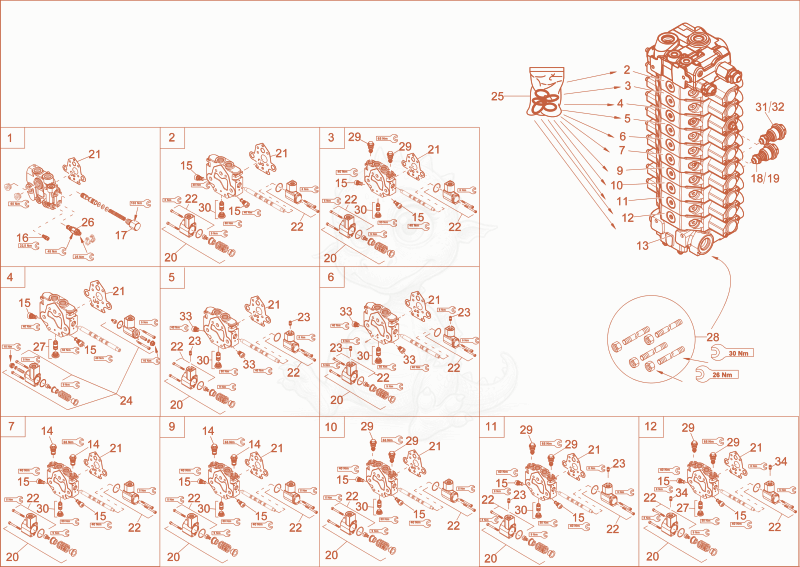

ET65 CONTROL VALVE 2 Diagram

Exploded parts diagram of the CONTROL VALVE 2 of a Wacker Neuson ET65, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000350505Not stocked
    input segment×1
  • 21000350506
    $1,943.19
    SECTION - 1000350506×1
  • 31000350508
    $2,433.43
    SECTION - 1000350508×1
  • 41000350509Not stocked
    rotary segment×1
  • 51000350510Not stocked
    travel segment×1
  • 61000350511Not stocked
    travel segment×1
  • 71000344902
    $1,960.61
    SEGMENT - 1000344902×1
  • 81000295981
    $248.16
    pressure limit reliefvalve - 1000295981×11
  • 91000344905Not stocked
    auxiliary segment×1
  • 101000350513Not stocked
    bucket segment×1
  • 111000350514Not stocked
    bucketstick segment×1
  • 121000350515Not stocked
    lifting boom segment×1
  • 131000344952Not stocked
    exit segment×1
  • 141000344960Not stocked
    pressure limit reliefvalve×4
  • 151000320034Not stocked
    non return valve×16
  • 161000316906
    $324.26
    GOVERNOR - 1000316906×1
  • 171000343688Not stocked
    secondary cartridge×1
  • 181000319400Not stocked
    Port relief valve×2
  • 191000330497Not stocked
    Port relief valve×2
  • 201000320035Not stocked
    valve cap×9
  • 211000350517
    $160.69
    Seal - 1000350517×11
  • 221000320038Not stocked
    valve cap×18
  • 231000322052
    $141.94
    Damping - 1000322052×6
  • 241000397064Not stocked
    valve cap×1
  • 251000344330Not stocked
    seal kit×11
  • 261000316910Not stocked
    pressure limit reliefvalve×1
  • 271000320033Not stocked
    pressure valve×2
  • 281000344956Not stocked
    tie rod×4
  • 291000350516Not stocked
    pressure limit reliefvalve×8
  • 301000320031Not stocked
    pressure valve×8
  • 311000338122Not stocked
    Port relief valve×2
  • 321000319400Not stocked
    Port relief valve×12
  • 331000344971
    $79.96
    PLUG - 1000344971×4
  • 341000400097Not stocked
    throttle×2
