ET65

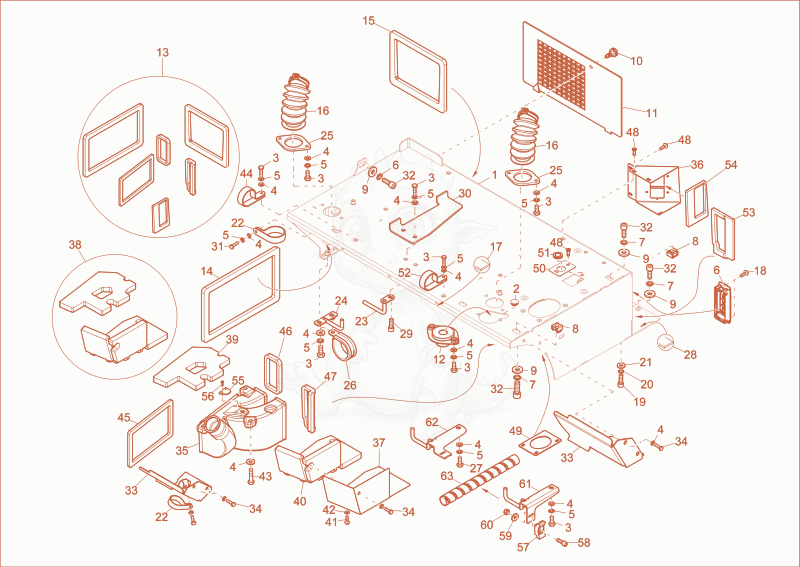

ET65 seat console Diagram

Exploded parts diagram of the seat console of a Wacker Neuson ET65, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000389367Not stocked
    seat console×1
  • 21000096827
    $1.73
    plug - 1000096827×1
  • 31000015343Not stocked
    hex screw×7
  • 41000015431Not stocked
    washer×14
  • 51000015437Not stocked
    lock washer×10
  • 61000313229Not stocked
    nozzle×1
  • 71000015438Not stocked
    lock washer×8
  • 81000094958
    $1.08
    Korgmutter M10 1,8-3,2 - 1000094958×4
  • 91000015434Not stocked
    washer×8
  • 101000107940
    $14.19
    GROOVED SCREW - 1000107940×1
  • 111000313500Not stocked
    SERVICE COVER×1
  • 121000338213Not stocked
    lock sheet×1
  • 131000389510
    $274.99
    seal - 1000389510×1
  • 141000309516
    $113.44
    seal - 1000309516×1
  • 151000309515
    $109.75
    seal - 1000309515×1
  • 161000336470
    $30.82
    bellow - 1000336470×2
  • 171000309165Not stocked
    seal strap foam×1.98
  • 181000323174Not stocked
    screw×2
  • 191000085457
    $0.13
    allen screw M6x25-8.8 A2C DIN912 - 1000085457×1
  • 201000015436Not stocked
    lock washer×1
  • 211000015430Not stocked
    u-washer×1
  • 221000083250
    $5.91
    hose clamp - 1000083250×2
  • 231000386559Not stocked
    hose clamp×1
  • 241000329714
    $12.54
    hose clamp - 1000329714×1
  • 251000335341Not stocked
    intermediate plate×2
  • 261000083250
    $5.91
    hose clamp - 1000083250×1
  • 271000013008Not stocked
    hex screw×1
  • 281000309165Not stocked
    seal strap foam×0.95
  • 291000019450Not stocked
    cheese head screw×1
  • 301000347638Not stocked
    limit stop×1
  • 311000085390
    $0.83
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×2
  • 321000085468
    $0.42
    cheese head screw M10x25-8.8 A2C-DIN912 - 1000085468×8
  • 331000389497
    $171.20
    bracket - 1000389497×1
  • 341000019136Not stocked
    hex screw×3
  • 351000387623
    $261.81
    frame - 1000387623×1
  • 361000514557Not stocked
    plate×1
  • 371000389131
    $96.15
    PLATE - 1000389131×1
  • 381000389123Not stocked
    insulating mat×1
  • 391000389505Not stocked
    insulating mat×1
  • 401000389506Not stocked
    insulating mat set×1
  • 411000085560
    $0.93
    screw - 1000085560×3
  • 421000094961
    $1.71
    washer 4,3 DIN125 - 1000094961×3
  • 431000085392
    $0.83
    hex screw M8x40-8.8 A2C DIN933 - 1000085392×3
  • 441000083248
    $4.47
    hose clamp RSGU 1 23/20 - 1000083248×1
  • 451000389507
    $158.61
    seal - 1000389507×1
  • 461000389508
    $94.58
    seal - 1000389508×1
  • 471000389509
    $101.73
    seal - 1000389509×1
  • 481000165459
    $1.33
    screw M6x12 ISO7380-2 - 1000165459×4
  • 491000389511
    $4.69
    seal - 1000389511×1
  • 501000155184
    $13.23
    RUBBER SLEEVE - 1000155184×1
  • 511000389393
    $14.07
    plate - 1000389393×1
  • 521000274288
    $4.42
    pipe clamp RSGU 1.45/20-W1 - 1000274288×2
  • 531000314526
    $113.74
    seal - 1000314526×1
  • 541000381157
    $141.22
    Seal - 1000381157×1
  • 551000391062
    $10.25
    PLATE - 1000391062×1
  • 561000085560
    $0.93
    screw - 1000085560×2
  • 571000282739
    $2.12
    sockets - 1000282739×1
  • 581000085494
    $1.08
    allen screw M 5x12-8.8 A2C DIN912 - 1000085494×1
  • 591000094962
    $0.04
    washer A 5,3 A2C DIN125 - 1000094962×1
  • 601000085587
    $0.03
    HEXAGON NUT - 1000085587×1
  • 611000389602Not stocked
    hose clamp×1
  • 621000438337
    $60.74
    hose clamp - 1000438337×1
  • 631000372969Not stocked
    protection×0.25
