ET65

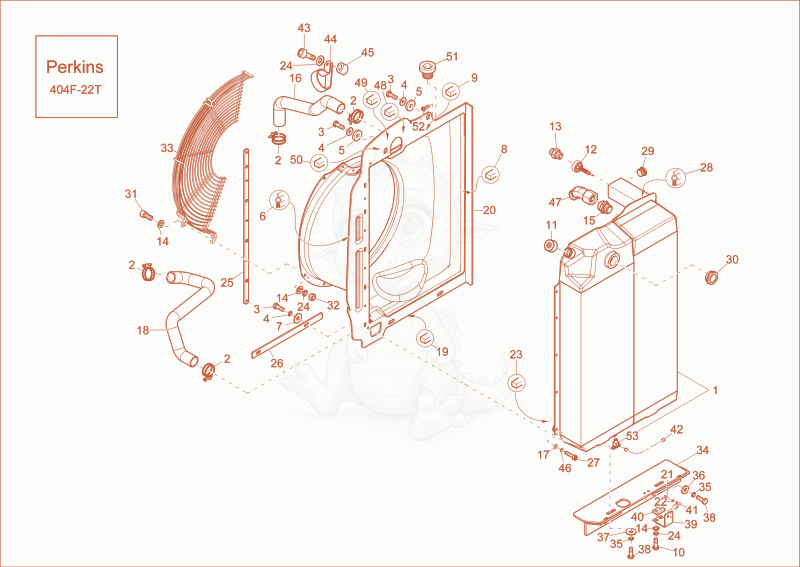

ET65 combicooler Diagram
- combicooler - 1000316114×1
- hose clamp - 1000285400×4
- 31000015348Not stockedhex screw×4
- 41000015438Not stockedlock washer×4
- Washer 10,5 St A2C - 1000092303×2
- rubber profile 1,5-3mm - 1000098164×0.93
- washer 10,5 A2C DIN125 - 1000015432×2
- seal strap foam 10x15 - 1000098196×0.71
- seal strap foam 10x15 - 1000098196×0.52
- 101000019136Not stockedhex screw×2
- 111000375983Not stockedcooler cap×1
- non return valve LV-10-30A - 1000304327×1
- GE28LR11/4EDOMDA3C - 1000085107×1
- 141000015431Not stockedwasher×6
- 151000015496Not stockedscrew joint×1
- cooler water hose - 1000305321×1
- 171000015430Not stockedu-washer×5
- cooler water hose - 1000305310×1
- seal strap foam 10x15 - 1000098196×1.23
- 201000354656Not stockedRadiator scoop×1
- hex screw - 1000273341×2
- shim - 1000304107×2
- seal strap foam 10x15 - 1000098196×0.49
- 241000015437Not stockedlock washer×3
- 251000354676Not stockedfixing plate×1
- 261000326217Not stockedfixing plate×1
- allen screw M6x25-8.8 A2C DIN912 - 1000085457×5
- rubber profile 1,5-3mm - 1000098164×0.22
- VSTI3/4EDA3C - 1000082831×1
- 301000002989Not stockedview glass×1
- 311000019593Not stockedcheese head screw×3
- 321000013021Not stockedhexagon nut×3
- 331000331400Not stockedprotecting screen×1
- 341000307677Not stockedfixing plate×1
- lock washer - 1000082609×4
- WASHER - 1000085610×2
- washer - 1000085613×2
- 381000015381Not stockedhex screw×4
- 391000393518Not stockedangle×1
- rubber - 1000337565×1
- 411000337372Not stockedsensor×1
- 421000411932Not stockedfuel line×0.16
- cheese head screw M8x30-10.9 DACRO500-5 - 1000085497×1
- pipe clamp RSGU 1.45/20-W1 - 1000274288×1
- Sleeve - 1000255818×1
- 461000015436Not stockedlock washer×5
- EV28LOMDA3C screw joint - 1000160943×1
- seal strap foam 10x15 - 1000098196×0.15
- seal strap foam 10x15 - 1000098196×0.06
- seal strap foam 10x15 - 1000098196×0.07
- Plug - 1000332301×1
- screw - 1000153221×1
- 531000425968Not stockeddrain valve×1
