ET65

ET65 fuel tank Diagram

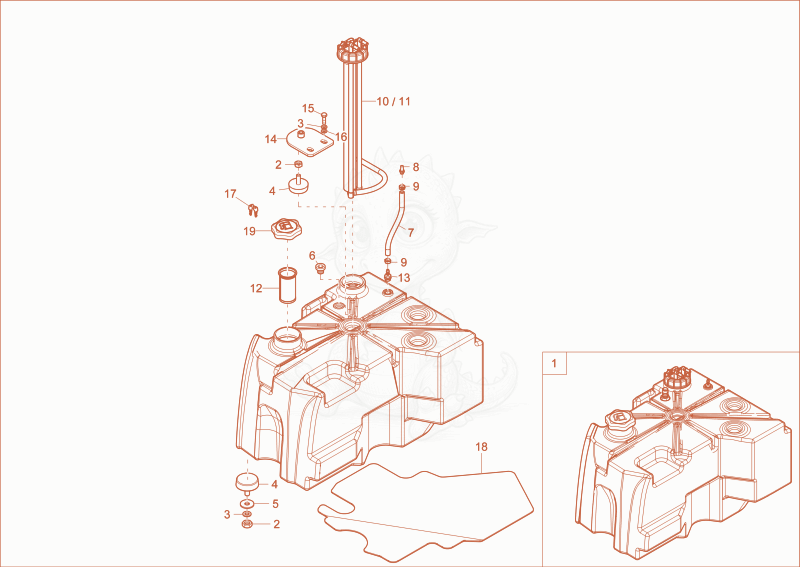

Exploded parts diagram of the fuel tank of a Wacker Neuson ET65, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000466257
    $1,956.82
    FUEL TANK E14 - 1000466257×1
  • 21000015407Not stocked
    hexagon nut×3
  • 31000015438Not stocked
    lock washer×4
  • 41000052658Not stocked
    rubber buffer×3
  • 51000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×2
  • 61000082826
    $13.27
    VSTI3/4ORA3C - 1000082826×1
  • 71000411932Not stocked
    fuel line×0.24
  • 81000069386Not stocked
    sintermetal filter×1
  • 91000267809
    $3.22
    clamp hose 15.3 - 1000267809×2
  • 101000324633Not stocked
    Suction lance×1
  • 111000458756Not stocked
    Suction lance×1
  • 121000267866
    $20.53
    FILING STRAINER - 1000267866×1
  • 131000158566
    $7.26
    GES08R3/8"OR - 1000158566×1
  • 141000382674
    $51.92
    PLATE - 1000382674×1
  • 151000013009Not stocked
    hex screw×2
  • 161000094974
    $0.70
    washer M10-DIN134 - 1000094974×2
  • 171000184819
    $14.17
    EZ17 Key without cap - 1000184819×1
  • 181000350902Not stocked
    rubber mat×1
  • 191000271755
    $50.96
    filler cap - 1000271755×1
