ET65

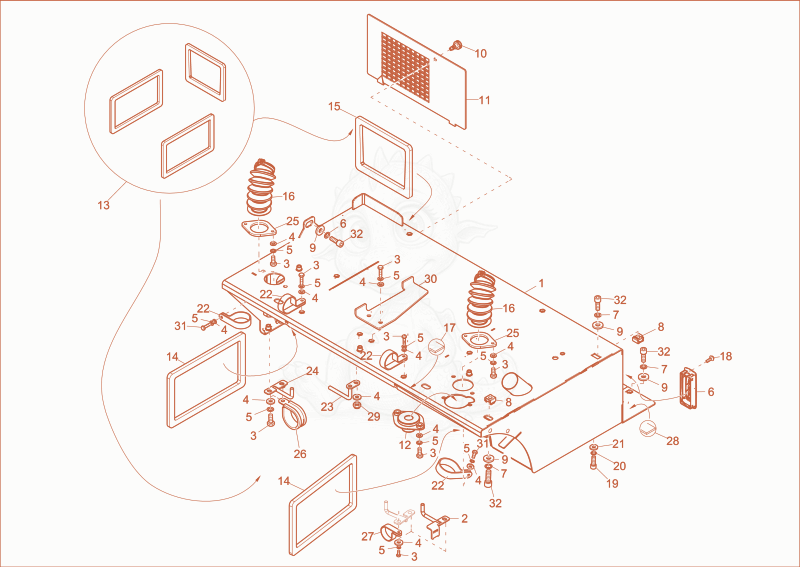

ET65 seat console Diagram

Exploded parts diagram of the seat console of a Wacker Neuson ET65, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000305675Not stocked
    seat console×1
  • 21000371907Not stocked
    hose clamp×1
  • 31000015343Not stocked
    hex screw×7
  • 41000015431Not stocked
    washer×11
  • 51000015437Not stocked
    lock washer×10
  • 61000313229Not stocked
    nozzle×1
  • 71000015438Not stocked
    lock washer×8
  • 81000094958
    $1.08
    Korgmutter M10 1,8-3,2 - 1000094958×4
  • 91000015434Not stocked
    washer×8
  • 101000107940
    $14.19
    GROOVED SCREW - 1000107940×1
  • 111000313500Not stocked
    SERVICE COVER×1
  • 121000338213Not stocked
    lock sheet×1
  • 131000314075Not stocked
    insulating mat×1
  • 141000309516
    $113.44
    seal - 1000309516×2
  • 151000309515
    $109.75
    seal - 1000309515×1
  • 161000336470
    $30.82
    bellow - 1000336470×2
  • 171000309165Not stocked
    seal strap foam×1.98
  • 181000323174Not stocked
    screw×2
  • 191000085457
    $0.13
    allen screw M6x25-8.8 A2C DIN912 - 1000085457×1
  • 201000015436Not stocked
    lock washer×1
  • 211000015430Not stocked
    u-washer×1
  • 221000083250
    $5.91
    hose clamp - 1000083250×4
  • 231000329855Not stocked
    hose clamp×1
  • 241000329714
    $12.54
    hose clamp - 1000329714×1
  • 251000335341Not stocked
    intermediate plate×2
  • 261000083250
    $5.91
    hose clamp - 1000083250×1
  • 271000272660
    $5.41
    pipe clamp RSGU 1.30/20 - 1000272660×1
  • 281000309165Not stocked
    seal strap foam×0.95
  • 291000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×1
  • 301000347638Not stocked
    limit stop×1
  • 311000085390
    $0.83
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×2
  • 321000085468
    $0.42
    cheese head screw M10x25-8.8 A2C-DIN912 - 1000085468×8
