ET65

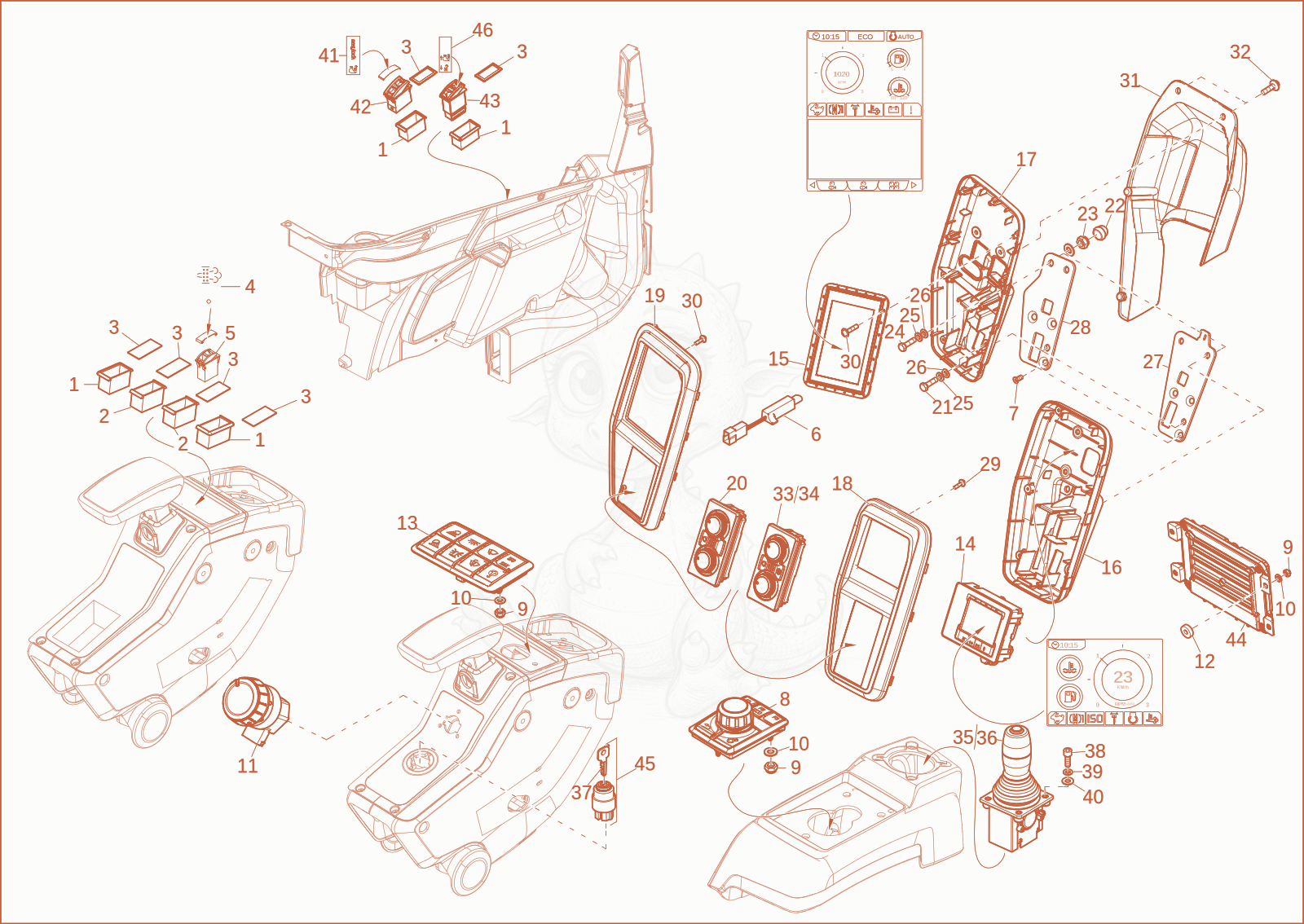

ET65 instrument panel Diagram

Exploded parts diagram of the instrument panel of a Wacker Neuson ET65, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000027168Not stocked
    switch frame×4
  • 21000027178Not stocked
    switch frame×2
  • 31000027006Not stocked
    blind cover×6
  • 41000284519
    $13.18
    SYMBOL - 1000284519×1
  • 51000353597Not stocked
    tilt switch×1
  • 61000352451
    $64.05
    diode - 1000352451×1
  • 71000015373Not stocked
    countersunk screw×3
  • 81000344055Not stocked
    control unit×1
  • 91000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×5
  • 101000015430Not stocked
    u-washer×5
  • 111000309687
    $272.60
    hand throttle rotary encoder - 1000309687×1
  • 121000337561Not stocked
    rubber disc×4
  • 131000303619
    $629.97
    Keypad - 1000303619×1
  • 141000309733Not stocked
    indicator instrument×1
  • 151000354816
    $2,132.57
    DISPLAY - 1000354816×1
  • 161000345709
    $40.90
    trim - 1000345709×1
  • 171000345668
    $70.40
    trim - 1000345668×1
  • 181000345666
    $30.34
    trim - 1000345666×1
  • 191000345667
    $58.48
    trim - 1000345667×1
  • 201000309966
    $677.23
    heating - 1000309966×1
  • 211000085390
    $0.83
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×1
  • 221000004276Not stocked
    cover cap×2
  • 231000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×2
  • 241000013008Not stocked
    hex screw×2
  • 251000015437Not stocked
    lock washer×3
  • 261000015431Not stocked
    washer×5
  • 271000315592
    $25.33
    plate - 1000315592×1
  • 281000324625
    $18.66
    Plate - 1000324625×1
  • 291000328756Not stocked
    ovalhead screw×4
  • 301000328756Not stocked
    ovalhead screw×11
  • 311000335310
    $21.70
    COVER - 1000335310×1
  • 321000335809
    $1.22
    SCREW - 1000335809×2
  • 331000309965
    $609.00
    air conditioning controller - 1000309965×1
  • 341000373338Not stocked
    air conditioning controller×1
  • 351000328099Not stocked
    dozer blade lever×1
  • 361000304828
    $1,119.15
    DOZER BLADE LEVER - 1000304828×1
  • 371000184819
    $14.17
    EZ17 Key without cap - 1000184819×1
  • 381000082474
    $0.80
    allen screw M4x16-8.8 A2C-DIN912 - 1000082474×4
  • 391000082612
    $0.65
    lock washer - 1000082612×4
  • 401000094961
    $1.71
    washer 4,3 DIN125 - 1000094961×4
  • 411000337684Not stocked
    symbol×1
  • 421000353593Not stocked
    Rocker switch×1
  • 431000337686Not stocked
    switch×1
  • 441000292881
    $1,762.44
    CONTROL UNIT - 1000292881×1
  • 451000184001
    $125.82
    Ignition lock-R-1000125516 - 1000184001×1
  • 461000337685
    $3.67
    SYMBOL - 1000337685×1
