ET65

ET65 HYDRAULIC PUMP DRIVE Diagram

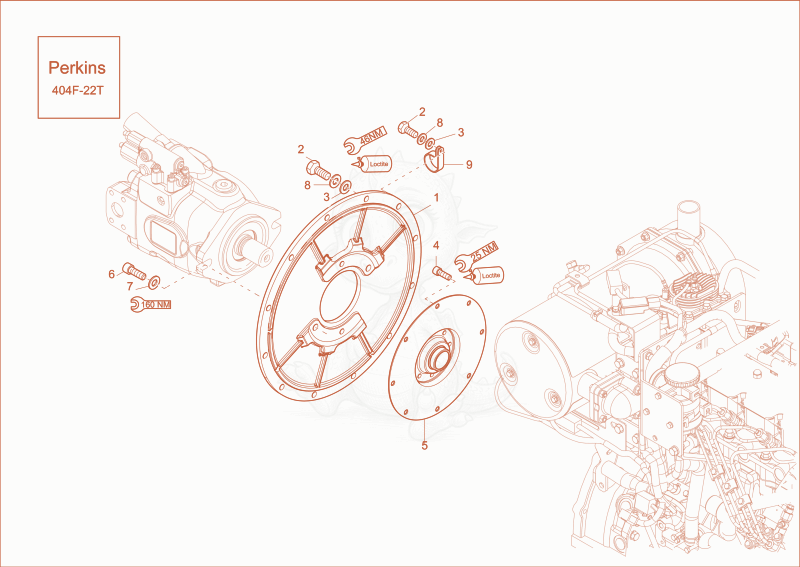

Exploded parts diagram of the HYDRAULIC PUMP DRIVE of a Wacker Neuson ET65, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000361805Not stocked
    pump carrier×1
  • 21000223461
    $1.45
    screw - 1000223461×12
  • 31000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×12
  • 41000222476
    $1.91
    screw - 1000222476×8
  • 51000283934
    $245.42
    coupling - 1000283934×1
  • 61000015356Not stocked
    cheese head screw×2
  • 71000085610
    $0.43
    WASHER - 1000085610×2
  • 81000015438Not stocked
    lock washer×12
  • 91000083280
    $7.06
    HOSE CLAMP - 1000083280×1
