ET65

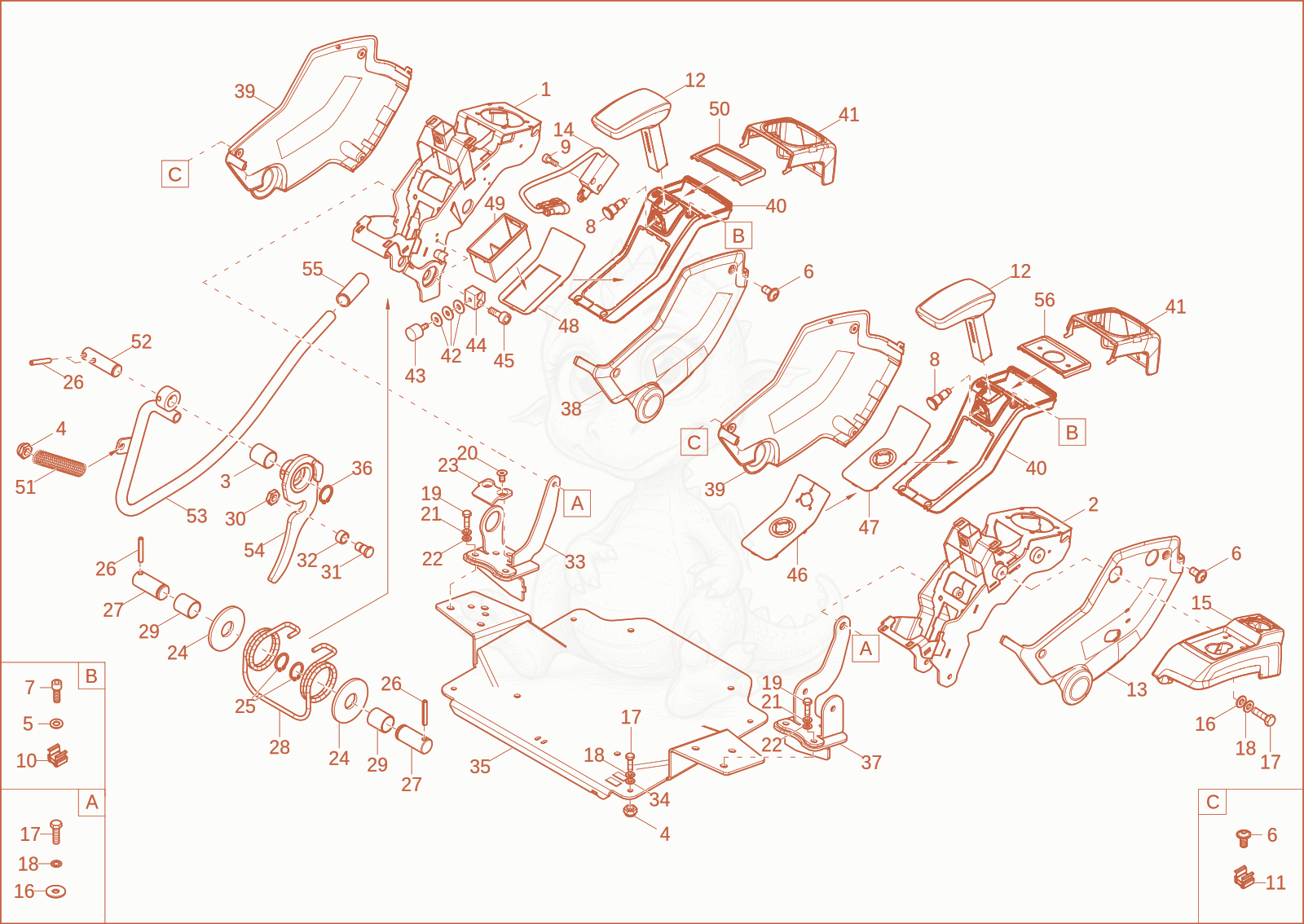

ET65 controllever carrier Diagram

Exploded parts diagram of the controllever carrier of a Wacker Neuson ET65, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000379419
    $246.85
    frame - 1000379419×1
  • 21000379418
    $264.08
    frame - 1000379418×1
  • 31000247957
    $2.35
    slide bearing 16x18x20 - 1000247957×1
  • 41000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×5
  • 51000094962
    $0.04
    washer A 5,3 A2C DIN125 - 1000094962×10
  • 61000165459
    $1.33
    screw M6x12 ISO7380-2 - 1000165459×10
  • 71000085451
    $0.70
    allen screw M5x16-8.8 A2C DIN912 - 1000085451×10
  • 81000247956
    $27.90
    pin detent - 1000247956×2
  • 91000082474
    $0.80
    allen screw M4x16-8.8 A2C-DIN912 - 1000082474×2
  • 101000094953
    $0.75
    Korgmutter M5 3,6-4,5 - 1000094953×8
  • 111000094952
    $0.75
    cage nut M6 2,6-3,5 - 1000094952×4
  • 121000367058Not stocked
    arm rest×2
  • 131000323175
    $117.91
    trim - 1000323175×1
  • 141000329830Not stocked
    end switch×1
  • 151000306025
    $144.98
    console - 1000306025×1
  • 161000013027Not stocked
    washer×7
  • 171000013008Not stocked
    hex screw×9
  • 181000015437Not stocked
    lock washer×9
  • 191000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×6
  • 201000015373Not stocked
    countersunk screw×2
  • 211000015438Not stocked
    lock washer×6
  • 221000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×6
  • 231000261540
    $11.63
    bracket - 1000261540×1
  • 241000247987
    $3.83
    end washer - 1000247987×2
  • 251000095358
    $1.34
    lock ring 20x1,2 - 1000095358×2
  • 261000082719
    $0.73
    cotter pin 5x36 - 1000082719×4
  • 271000247954
    $13.54
    pin DM=20x47 - 1000247954×2
  • 281000247988
    $20.75
    spring 4,5x56 - 1000247988×1
  • 291000247959
    $4.36
    slide bearing 20x23x25 - 1000247959×2
  • 301000256268
    $1.11
    nut M10x1,25 A2C-DIN439 - 1000256268×1
  • 311000254944
    $7.93
    pin - 1000254944×1
  • 321000254945
    $9.30
    roller - 1000254945×1
  • 331000278627
    $97.58
    Consoleleft 1000278627×1
  • 341000015431Not stocked
    washer×4
  • 351000379417
    $332.82
    console - 1000379417×1
  • 361000085631
    $0.86
    lock ring 16x1 - 1000085631×1
  • 371000278626
    $97.05
    Console - 1000278626×1
  • 381000248073
    $46.44
    cover right - 1000248073×1
  • 391000248074
    $93.71
    cover left - 1000248074×2
  • 401000319136Not stocked
    trim×2
  • 411000319137Not stocked
    trim×2
  • 421000095343
    $1.42
    washer A 6,4 St A2C DIN9021 - 1000095343×3
  • 431000247997
    $3.14
    metal-rubber buffer - 1000247997×1
  • 441000247984
    $24.32
    bracket rupper buffer - 1000247984×1
  • 451000085457
    $0.13
    allen screw M6x25-8.8 A2C DIN912 - 1000085457×2
  • 461000306024
    $36.12
    insert - 1000306024×1
  • 471000319133Not stocked
    insert×1
  • 481000319134
    $120.96
    insert - 1000319134×1
  • 491000248085
    $42.09
    board - 1000248085×1
  • 501000319131Not stocked
    insert×1
  • 511000247991
    $9.66
    tension spring - 1000247991×1
  • 521000247955
    $18.07
    pin DM=16x57 - 1000247955×1
  • 531000247992
    $104.56
    lever right - 1000247992×1
  • 541000247990
    $58.36
    lever left - 1000247990×1
  • 551000248836
    $3.52
    handle protection - 1000248836×1
  • 561000306008
    $12.76
    insert - 1000306008×1
