ET65

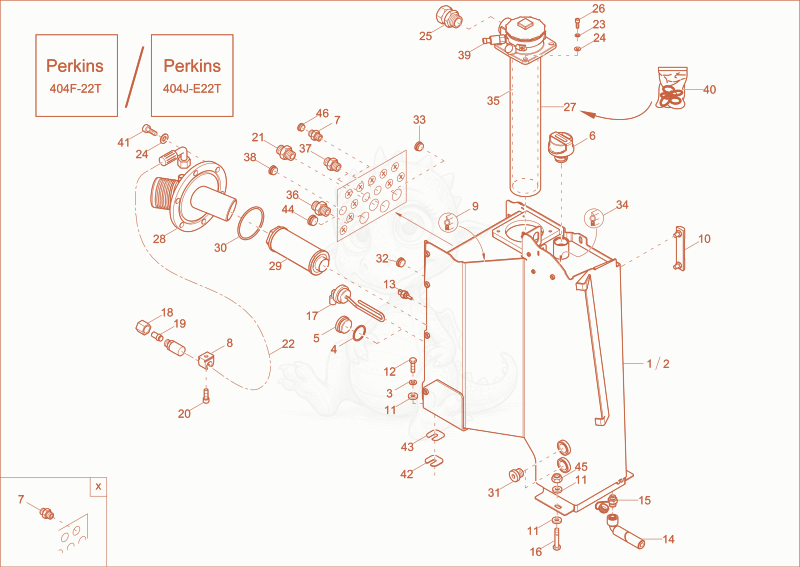

ET65 hydraulic tank Diagram

Exploded parts diagram of the hydraulic tank of a Wacker Neuson ET65, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000350880
    $2,102.30
    HYDRAULIC OIL STORAGE TANK - 1000350880×1
  • 21000393517
    $5,056.10
    oil fuel tank - 1000393517×2
  • 31000082609
    $0.73
    lock washer - 1000082609×1
  • 41000050121Not stocked
    seal ring×1
  • 51000269637
    $12.68
    LOCK SCREW - 1000269637×1
  • 61000153385
    $57.52
    venting filter - 1000153385×1
  • 71000015488Not stocked
    screw joint×13
  • 81000012315Not stocked
    clamp clamp×1
  • 91000017845Not stocked
    rubber profile×0.371
  • 101000012521Not stocked
    oil level indic×1
  • 111000085610
    $0.43
    WASHER - 1000085610×5
  • 121000015381Not stocked
    hex screw×1
  • 131000302951
    $100.29
    temperature sensor EW/ET65,100,145 - 1000302951×1
  • 141000234781
    $23.54
    drain coupling M22x1,5 90° - 1000234781×1
  • 151000322340Not stocked
    service valve×1
  • 161000085370
    $1.35
    hex screw - 1000085370×2
  • 171000038244Not stocked
    oil pre heater×1
  • 181000015481Not stocked
    union nut×1
  • 191000083043
    $1.31
    VKA08A3C - 1000083043×1
  • 201000085451
    $0.70
    allen screw M5x16-8.8 A2C DIN912 - 1000085451×1
  • 211000015493Not stocked
    screw joint×1
  • 221000343583Not stocked
    Hose×1
  • 231000015438Not stocked
    lock washer×4
  • 241000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×10
  • 251000103503
    $54.16
    EGE35 LR1 1/4" A3C - 1000103503×1
  • 261000085468
    $0.42
    cheese head screw M10x25-8.8 A2C-DIN912 - 1000085468×4
  • 271000357348Not stocked
    reflux filter×1
  • 281000334707Not stocked
    suction flange×1
  • 291000291317
    $69.29
    suction filter - 1000291317×1
  • 301000370168
    $1.80
    o-ring - 1000370168×1
  • 311000082787
    $19.16
    VSTI1EDA3C - 1000082787×2
  • 321000082786
    $3.66
    VSTI1/2EDA3C - 1000082786×1
  • 331000082831
    $5.07
    VSTI3/4EDA3C - 1000082831×1
  • 341000017845Not stocked
    rubber profile×0.347
  • 351000318995Not stocked
    reflux filter insert×1
  • 361000015494Not stocked
    screw joint×1
  • 371000083005
    $9.53
    GE08LR1/2EDOMDA3C - 1000083005×1
  • 381000022438Not stocked
    screw joint×1
  • 391000350733Not stocked
    dirt indicator×1
  • 401000109141
    $16.59
    seal kit - 1000109141×1
  • 411000015354
    $0.82
    allen screw M10x20-8.8 A2C-DIN912 - 1000015354×6
  • 421000125639
    $9.00
    shim - 1000125639×3
  • 431000134431
    $3.28
    shim - 1000134431×2
  • 441000082786
    $3.66
    VSTI1/2EDA3C - 1000082786×1
  • 451000020127Not stocked
    hexagon nut×2
  • 461000022438Not stocked
    screw joint×1
