EZ17

EZ17 relay case Diagram

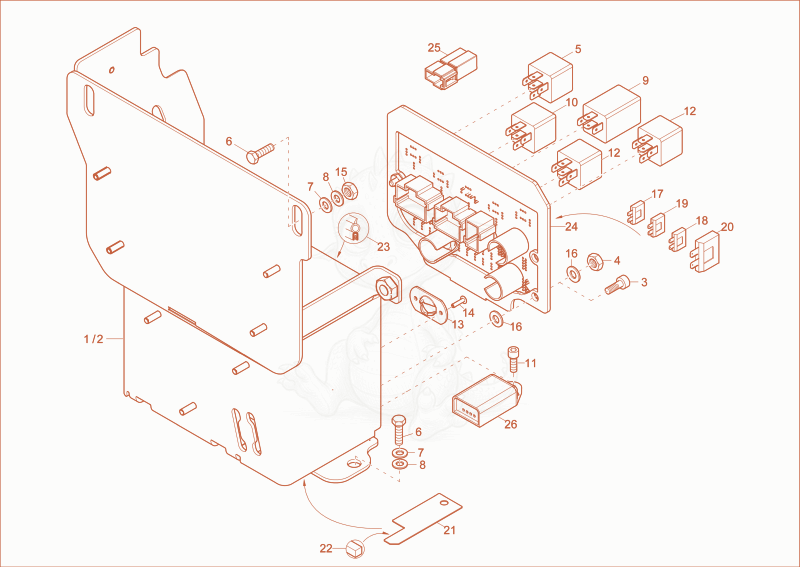

Exploded parts diagram of the relay case of a Wacker Neuson EZ17, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000285764
    $72.80
    electronic box X-1000323089 - 1000285764×1
  • 21000398009Not stocked
    electronic box×1
  • 31000085451
    $0.70
    allen screw M5x16-8.8 A2C DIN912 - 1000085451×3
  • 41000082547
    $0.88
    nut M4-8 A2C-DIN985 - 1000082547×3
  • 51000353650Not stocked
    relay×1
  • 61000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×3
  • 71000015438Not stocked
    lock washer×3
  • 81000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×3
  • 91000178782
    $160.25
    time relay - 1000178782×1
  • 101000353650Not stocked
    relay×1
  • 111000085494
    $1.08
    allen screw M 5x12-8.8 A2C DIN912 - 1000085494×1
  • 121000353650Not stocked
    relay×2
  • 131000082704
    $2.52
    stop cam CAMLOC - 1000082704×1
  • 141000082698
    $0.65
    blind rivet A3x12 - 1000082698×2
  • 151000015407Not stocked
    hexagon nut×2
  • 161000328450Not stocked
    washer×6
  • 171000095374
    $0.85
    fuse - 1000095374×1
  • 181000085682
    $0.43
    fuse - 1000085682×4
  • 191000085683
    $0.55
    FUSE - 1000085683×4
  • 201000015298
    $3.25
    FUSE - 1000015298×2
  • 211000297273
    $6.50
    plate - 1000297273×1
  • 221000097928
    $4.57
    edge protection - 1000097928×0.03
  • 231000097922
    $19.67
    rubber profile - 1000097922×0.6
  • 241000262466
    $346.42
    electric E12 - 1000262466×1
  • 251000012912Not stocked
    diode×1
  • 261000005108Not stocked
    time relay×1
