EZ17

EZ17 BOOM CYLINDER Diagram

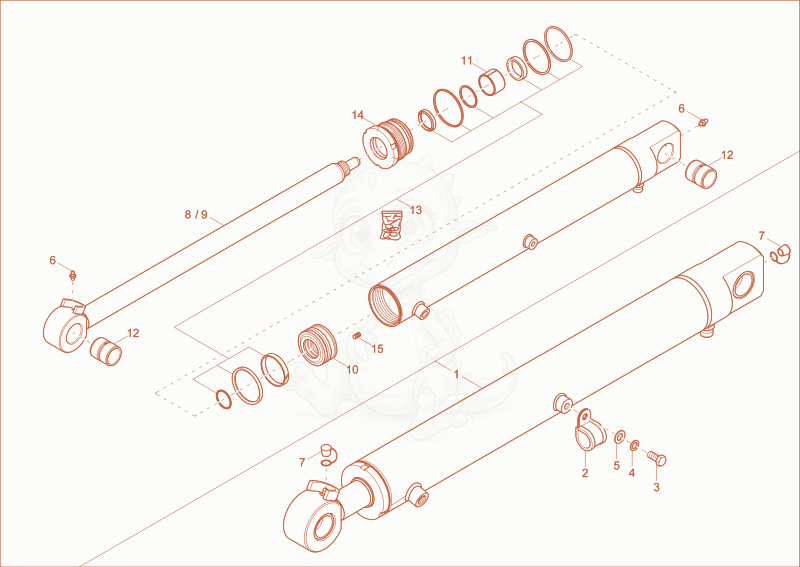

Exploded parts diagram of the BOOM CYLINDER of a Wacker Neuson EZ17, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000458322Not stocked
    boom cylinder×1
  • 21000083248
    $4.47
    hose clamp RSGU 1 23/20 - 1000083248×1
  • 31000019136Not stocked
    hex screw×1
  • 41000015437Not stocked
    lock washer×1
  • 51000015431Not stocked
    washer×1
  • 61000015475Not stocked
    grease nipple×2
  • 71000015480Not stocked
    cap grease nipple×2
  • 81000414699Not stocked
    piston rod×1
  • 91000478475Not stocked
    piston rod×1
  • 101000414710
    $80.76
    piston - 1000414710×1
  • 111000403797Not stocked
    slide bearing×1
  • 121000403740
    $61.85
    Bushing - 1000403740×2
  • 131000414703
    $159.19
    seal kit - 1000414703×1
  • 141000414708
    $126.23
    bushing - 1000414708×2
  • 151000015384Not stocked
    thread pin×1
