EZ17

EZ17 fuel system Diagram

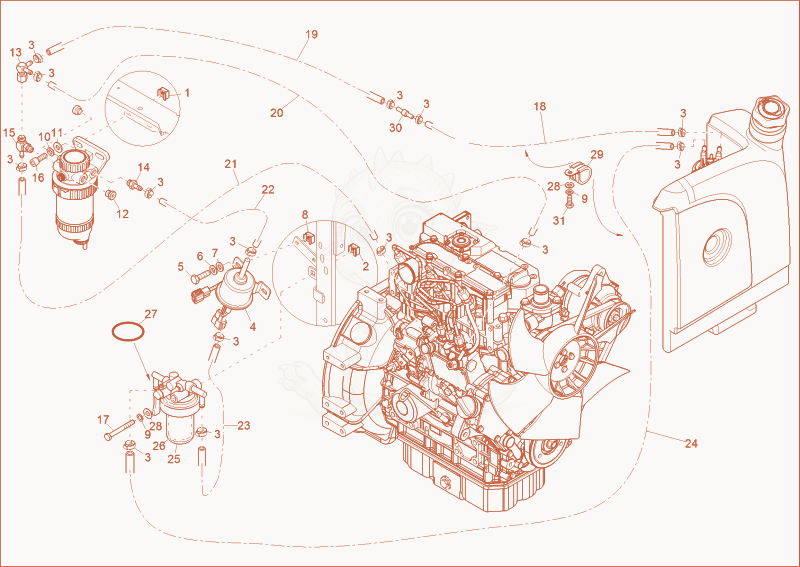

Exploded parts diagram of the fuel system of a Wacker Neuson EZ17, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000094956
    $1.05
    cage nut M10 3,3-4,7 - 1000094956×2
  • 21000015410Not stocked
    cage nut×1
  • 31000267809
    $3.22
    clamp hose 15.3 - 1000267809×14
  • 41000093894
    $299.72
    FUEL PUMP - 1000093894×1
  • 51000085382
    $0.70
    HEX SCREW - 1000085382×2
  • 61000015436Not stocked
    lock washer×2
  • 71000015430Not stocked
    u-washer×2
  • 81000094955
    $0.75
    Korgmutter M6 3,6-4,5 - 1000094955×2
  • 91000015437Not stocked
    lock washer×2
  • 101000015438Not stocked
    lock washer×2
  • 111000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
  • 121000517094Not stocked
    screw joint×2
  • 131000341069Not stocked
    screw joint×1
  • 141000264009
    $12.00
    screw joint 8mm / 1/2" -20 UNF-28 - 1000264009×1
  • 151000264794
    $31.81
    screw joint 1/2"-20 UNF 90 GRD - 1000264794×1
  • 161000085502
    $0.88
    allen screw M10x30 Geomet 500A DIN912 - 1000085502×2
  • 171000022334Not stocked
    hex screw×1
  • 181000411932Not stocked
    fuel line×0.33
  • 191000411932Not stocked
    fuel line×0.8
  • 201000411932Not stocked
    fuel line×0.39
  • 211000411932Not stocked
    fuel line×0.25
  • 221000411932Not stocked
    fuel line×0.16
  • 231000411932Not stocked
    fuel line×0.31
  • 241000411932Not stocked
    fuel line×1.45
  • 251000159923
    $91.84
    WATER SEPERATOR - 1000159923×1
  • 261000159924
    $20.19
    Filter - 1000159924×1
  • 271000019708
    $1.69
    O-RING - 1000019708×1
  • 281000015431Not stocked
    washer×2
  • 291000272660
    $5.41
    pipe clamp RSGU 1.30/20 - 1000272660×1
  • 301000269379
    $45.77
    Diesel non return valve - 1000269379×1
  • 311000019136Not stocked
    hex screw×1
