EZ17

EZ17 dipperstick Diagram

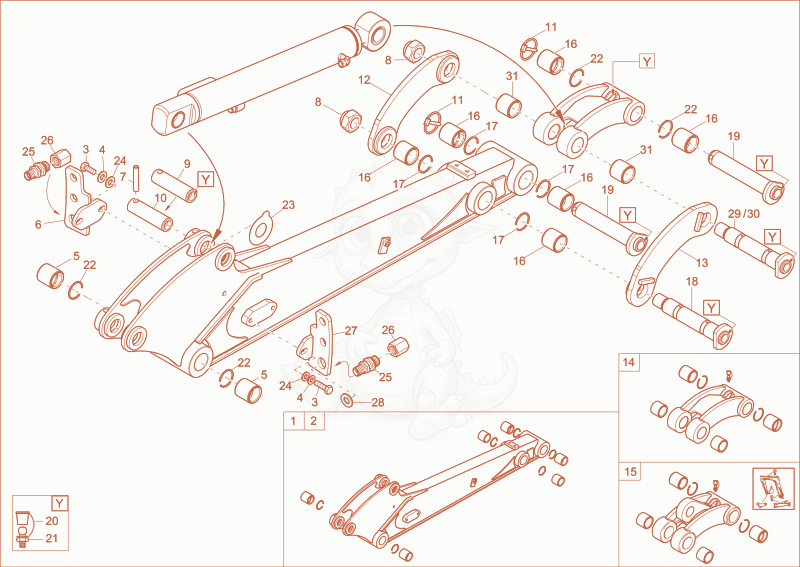

Exploded parts diagram of the dipperstick of a Wacker Neuson EZ17, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000291834
    $2,904.43
    Pre Assembleddipperarm 1000291834×1
  • 21000291835
    $1,763.04
    Pre Assembleddipperarm 1000291835×1
  • 31000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
  • 41000015438Not stocked
    lock washer×4
  • 51000015617Not stocked
    steel bushing×2
  • 61000273648
    $46.15
    bracket hose - 1000273648×1
  • 71000021313Not stocked
    cotter pin×1
  • 81000015421Not stocked
    hexagon nut×2
  • 91000267689
    $36.98
    PIN - 1000267689×1
  • 101000371417Not stocked
    pin×1
  • 111000015457Not stocked
    cotter pin×2
  • 121000004471Not stocked
    pivot plate×1
  • 131000004472Not stocked
    pivot plate×1
  • 141000281009
    $2,357.53
    Pre Assembledconnectinglink 1000281009×1
  • 151000281011
    $1,124.40
    Pre Assembledconnectinglink 1000281011×1
  • 161000015613Not stocked
    steel bushing×6
  • 171000092456
    $3.09
    lock ring - 1000092456×4
  • 181000267685
    $92.82
    pin DM=32x200 - 1000267685×1
  • 191000267686
    $45.61
    pin DM=32x190 - 1000267686×2
  • 201000015480Not stocked
    cap grease nipple×6
  • 211000015475Not stocked
    grease nipple×6
  • 221000015466Not stocked
    lock ring×4
  • 231000153541
    $1.36
    shim 1,0mm - 1000153541×1
  • 241000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 251000160343
    $47.77
    screw joint 12L 1/2" - 1000160343×2
  • 261000082961
    $15.76
    locking cap - 1000082961×2
  • 271000273647
    $45.24
    bracket hose - 1000273647×1
  • 281000082625
    $0.83
    washer 19 - 1000082625×1
  • 291000351621
    $220.23
    PIN - 1000351621×1
  • 301000267685
    $92.82
    pin DM=32x200 - 1000267685×1
  • 311000015611Not stocked
    steel bushing×2
