EZ17

EZ17 CONTROL VALVE 1 Diagram

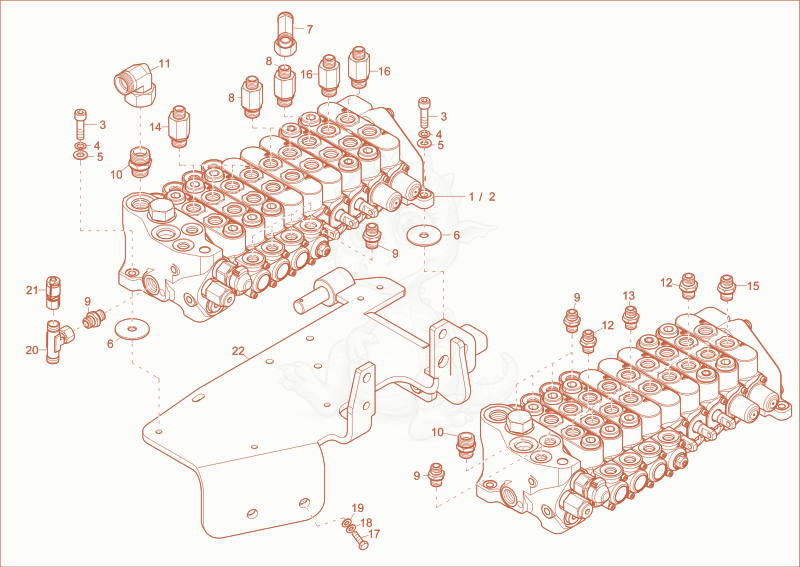

Exploded parts diagram of the CONTROL VALVE 1 of a Wacker Neuson EZ17, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000282092
    $2,854.07
    Controlblock 1000282092×1
  • 21000411756Not stocked
    valve block×1
  • 31000013014Not stocked
    cheese head screw×3
  • 41000015437Not stocked
    lock washer×3
  • 51000015431Not stocked
    washer×3
  • 61000156073
    $6.56
    rubber shock absorber - 1000156073×3
  • 71000015519
    $12.63
    ET12LOMDA3C - 1000015519×1
  • 81000290335
    $6.55
    screw joint 12L-3/8" EDL=51 - 1000290335×3
  • 91000015488Not stocked
    screw joint×11
  • 101000082979
    $6.95
    GE18LR1/2EDOMDA3C - 1000082979×2
  • 111000015513Not stocked
    screw joint×1
  • 121000015492
    $2.67
    GE12LREDOMDA3C - 1000015492×4
  • 131000015491Not stocked
    screw joint×3
  • 141000263161
    $69.04
    screw joint 10L-3/8" EDL=51 - 1000263161×4
  • 151000015489Not stocked
    screw joint×2
  • 161000263162
    $39.16
    screw joint 8L-3/8" ED L=51 - 1000263162×2
  • 171000085412
    $0.87
    6-Point screw M10x40-8.8 A2C-DIN933 - 1000085412×4
  • 181000015438Not stocked
    lock washer×4
  • 191000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 201000015518
    $8.71
    ET08LOMDA3C - 1000015518×1
  • 211000000575Not stocked
    minimess point×1
  • 221000281968
    $229.15
    Console 1000281968×1
