EZ17

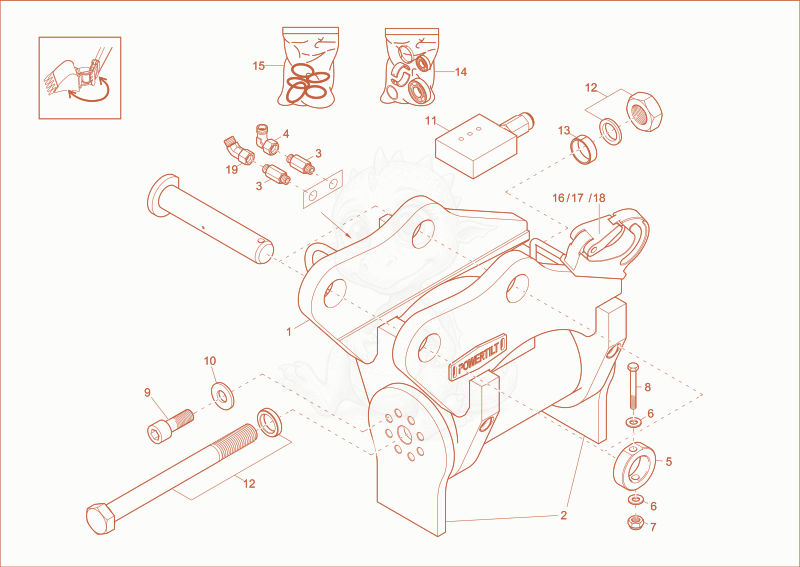

EZ17 Powertlit load hook (Option) Diagram

Exploded parts diagram of the Powertlit load hook (Option) of a Wacker Neuson EZ17, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000258409
    $4,984.25
    Powertilt 1000258409×1
  • 21000249339
    $762.91
    Footplate 1000249339×1
  • 31000248875
    $27.91
    extension - 1000248875×2
  • 41000000542
    $11.08
    EW08LOMD - 1000000542×1
  • 51000279024
    $58.36
    ring - 1000279024×2
  • 61000015431Not stocked
    washer×4
  • 71000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×2
  • 81000022334Not stocked
    hex screw×2
  • 91000249995
    $22.76
    cheese head screw - 1000249995×8
  • 101000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×8
  • 111000251485
    $3,218.02
    pressure limit reliefvalve - 1000251485×1
  • 121000288043
    $329.47
    Kittierod 1000288043×1
  • 131000288044
    $16.79
    BUSHING - 1000288044×2
  • 141000288042
    $413.86
    MAIN BEARING SET - 1000288042×1
  • 151000251486
    $960.01
    SEAL KIT - 1000251486×1
  • 161000258585
    $262.45
    KIT PowerTilt Gunnebo hook latch - 1000258585×1
  • 171000258581
    $103.82
    KIT PowerTilt Crosby hook latch - 1000258581×1
  • 181000325559Not stocked
    KIT PowerTilt Crosby hook latch×1
  • 191000187907
    $30.16
    EV08LA3C-EO45° - 1000187907×1
