EZ17

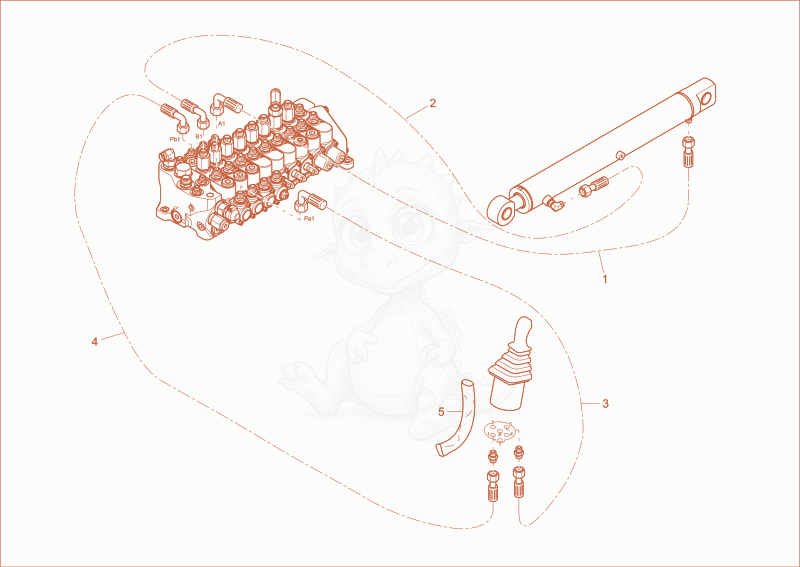

EZ17 LIFTING BOOM OPERATION Diagram

Exploded parts diagram of the LIFTING BOOM OPERATION of a Wacker Neuson EZ17, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000290961
    $83.20
    SLHYDR 2SC 10 PN12 90 PN10 0 L2200 S0 - 1000290961×1
  • 21000290965
    $80.43
    SLHYDR 2SC 8,0PN10 90 PN10 0 L2600 S0 - 1000290965×1
  • 31000290959
    $41.75
    SLHYDR 1SCP5,0PN8 90 PN8 0 L1450 0 - 1000290959×1
  • 41000290960
    $42.26
    SLHYDR 1SCP5,0PN8 90 PN8 0 L1500 0 - 1000290960×1
  • 51000277618
    $22.41
    protecting hose black - 1000277618×1
