EZ17

EZ17 DOZER BLADE OPERATION OPTION Diagram

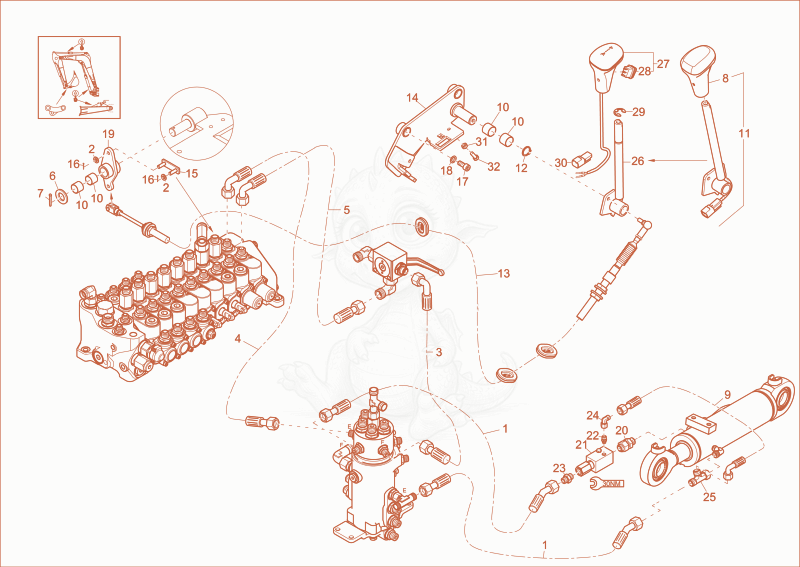

Exploded parts diagram of the DOZER BLADE OPERATION OPTION of a Wacker Neuson EZ17, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000277534
    $47.72
    SLHYDR 2SC 8,0PN10 45 PN10 0 L750,0S0 - 1000277534×2
  • 21000015430Not stocked
    u-washer×2
  • 31000076403
    $16.00
    SLHYDR 2SC 6,0PN8 90 PN8 0 L650,0 0 - 1000076403×1
  • 41000076438
    $13.94
    SLHYDR 2SC 6,0PN8 90 PN8 0 L550,0 0 - 1000076438×1
  • 51000239066
    $30.22
    SLHYDR 2SC 6,0PN8 90 PN8 0 L1050 0 - 1000239066×1
  • 61000021001
    $0.89
    WASHER - 1000021001×1
  • 71000095365
    $0.10
    cotter pin 3,2x20 - 1000095365×1
  • 81000280833
    $99.65
    X-1000300120 ball handle - 1000280833×1
  • 91000277568
    $35.24
    SLHYDR 2SC 6,0PN10 90 PN8 0 L300,0F0 - 1000277568×1
  • 101000151242
    $9.90
    slide bearing 17x19x15 - 1000151242×4
  • 111000274640
    $240.01
    DOZER BLADE LEVER - 1000274640×1
  • 121000085631
    $0.86
    lock ring 16x1 - 1000085631×1
  • 131000283401
    $174.48
    cable pull - 1000283401×1
  • 141000390941
    $137.43
    console - 1000390941×1
  • 151000325018Not stocked
    plate×1
  • 161000151228
    $1.03
    cotter pin - 1000151228×2
  • 171000019593Not stocked
    cheese head screw×2
  • 181000015437Not stocked
    lock washer×2
  • 191000280216
    $54.07
    lever - 1000280216×1
  • 201000243788
    $73.41
    screw joint - 1000243788×1
  • 211000243749
    $306.85
    VALVE - 1000243749×1
  • 221000015530Not stocked
    screw joint×1
  • 231000015491Not stocked
    screw joint×1
  • 241000000542
    $11.08
    EW08LOMD - 1000000542×1
  • 251000085089
    $10.48
    EL10LOMDA3C - 1000085089×1
  • 261000300217
    $50.07
    dozerblade lever - 1000300217×1
  • 271000300120
    $172.44
    handle - 1000300120×1
  • 281000300119
    $37.08
    SWITCH - 1000300119×1
  • 291000300615
    $1.73
    Lock washer 12 DIN6799 - 1000300615×1
  • 301000027445Not stocked
    pin housing×1
  • 311000013021Not stocked
    hexagon nut×1
  • 401000013008Not stocked
    hex screw×1
