EZ17

EZ17 SWIVEL CYLINDER OPERATION Diagram

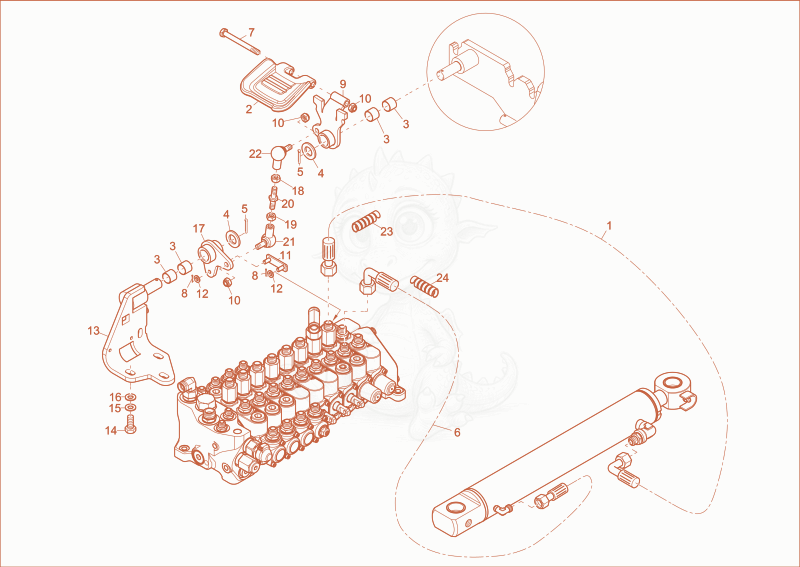

Exploded parts diagram of the SWIVEL CYLINDER OPERATION of a Wacker Neuson EZ17, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000245823
    $66.08
    SLHYDR 2SC 6,0PN8 90 PN8 0 L900,0K0 - 1000245823×1
  • 21000248761
    $283.99
    pedal opt. - 1000248761×1
  • 31000151242
    $9.90
    slide bearing 17x19x15 - 1000151242×4
  • 41000021001
    $0.89
    WASHER - 1000021001×2
  • 51000095365
    $0.10
    cotter pin 3,2x20 - 1000095365×2
  • 61000353933Not stocked
    Hose×1
  • 71000085319
    $1.28
    6-Point screw M8x80-8.8 A2C - 1000085319×1
  • 81000151228
    $1.03
    cotter pin - 1000151228×2
  • 91000374603
    $44.47
    LEVER X-1000434558 - 1000374603×1
  • 101000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×3
  • 111000325018Not stocked
    plate×1
  • 121000015430Not stocked
    u-washer×2
  • 131000281943
    $54.13
    bracket - 1000281943×1
  • 141000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×3
  • 151000015438Not stocked
    lock washer×3
  • 161000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×3
  • 171000280209
    $67.94
    lever - 1000280209×1
  • 181000128104
    $1.11
    nut M8LHA2C - 1000128104×1
  • 191000013021Not stocked
    hexagon nut×1
  • 201000280210
    $8.76
    steering rod - 1000280210×1
  • 211000222383
    $8.59
    ball and socket AS13 - 1000222383×1
  • 221000280212
    $8.70
    7all and socket DIN71802-A13-M8L-CS-DK - 1000280212×1
  • 231000142589
    $17.23
    winder pipe - 1000142589×1
  • 241000142589
    $17.23
    winder pipe - 1000142589×1
