G35

G35 Fuel Quick Connect Diagram

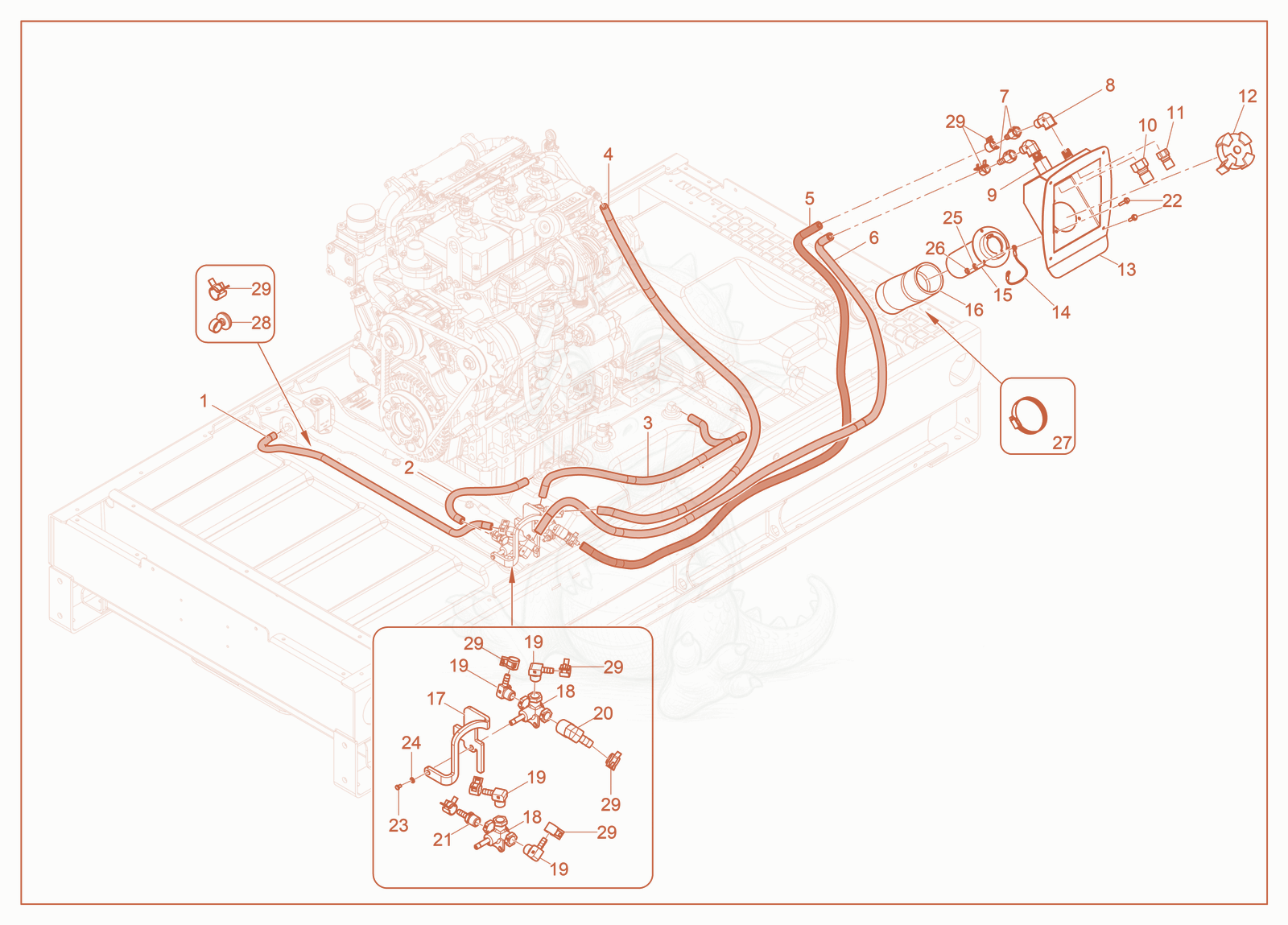

Exploded parts diagram of the Fuel Quick Connect of a Wacker Neuson G35, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15100059891
$19.43
HOSE RETURN QC TO FEED PUMP - 5100059891×1
25100058373
$34.25
HOSE SUCTION - 5100058373×1
35100059889
$20.46
HOSE RETURN QC TO TANK - 5100059889×1
45100059888
$22.84
HOSE RETURN QC - 5100059888×1
55100059890
$24.09
HOSE QC TO EXT - 5100059890×1
65100059890
$24.09
HOSE QC TO EXT - 5100059890×1
75000181823
$8.58
FITTING-3/8 BARB X 3/8 F.NPT - 5000181823×2
85000180571
$8.60
FITTING-ELBOW,3/8 NPTFX3/8 NPT - 5000180571×2
95200005250
$10.48
FITTING-REDUCER 1/2NPTF TO 3/8NPTM - 5200005250×1
105200024167Not stocked
Coupling×1
115200001623
$31.87
COUPLER-ISO 7241-1B 3/8 MALE - 5200001623×1
125000153424
$127.73
CAP-FUEL FILL - 5000153424×1
135200024165Not stocked
Fuel fill port×1
145200013415Not stocked
Wire, ground×1
155000153013
$56.33
TUBE-FILLER,WELDMENT P - 5000112007 - 5000153013×1
165100058372
$26.54
HOSE-FUEL FILL 2-3/8 X 185MM - 5100058372×1
175100057078
$21.44
HANDLE-FUEL VALVE,DUAL - 5100057078×1
185200025295Not stocked
Fuel valve×2
191000394294Not stocked
Fitting×4
205100060912
$29.50
FITTING-3/8 MNPT x 5/16 BARB, 45DEG - 5100060912×1
225100054264
$0.22
SCREW-M5x20-HEX.FLG.HD-8.8-ZNC - 5100054264×7
235000028329
$0.25
SCREW #8-32 X 1/4,HX.HD.MACH. - 5000028329×2
245000010628
$0.02
WASHER A4.3 FLAT - 5000010628×2
255000164907
$0.46
WASHER A5 LOCK,EXT,BLK ZINC 8T - 5000164907×2
261000342931Not stocked
Flange nut×7
275000028707
$0.67
CLAMP-THREADED,.21-.63 - 5000028707×2
281000357167
$1.80
TIE BUTTON - 1000357167×2
291000357140
$1.19
HOSE CLAMP CTB 16 - 1000357140×12
