G35

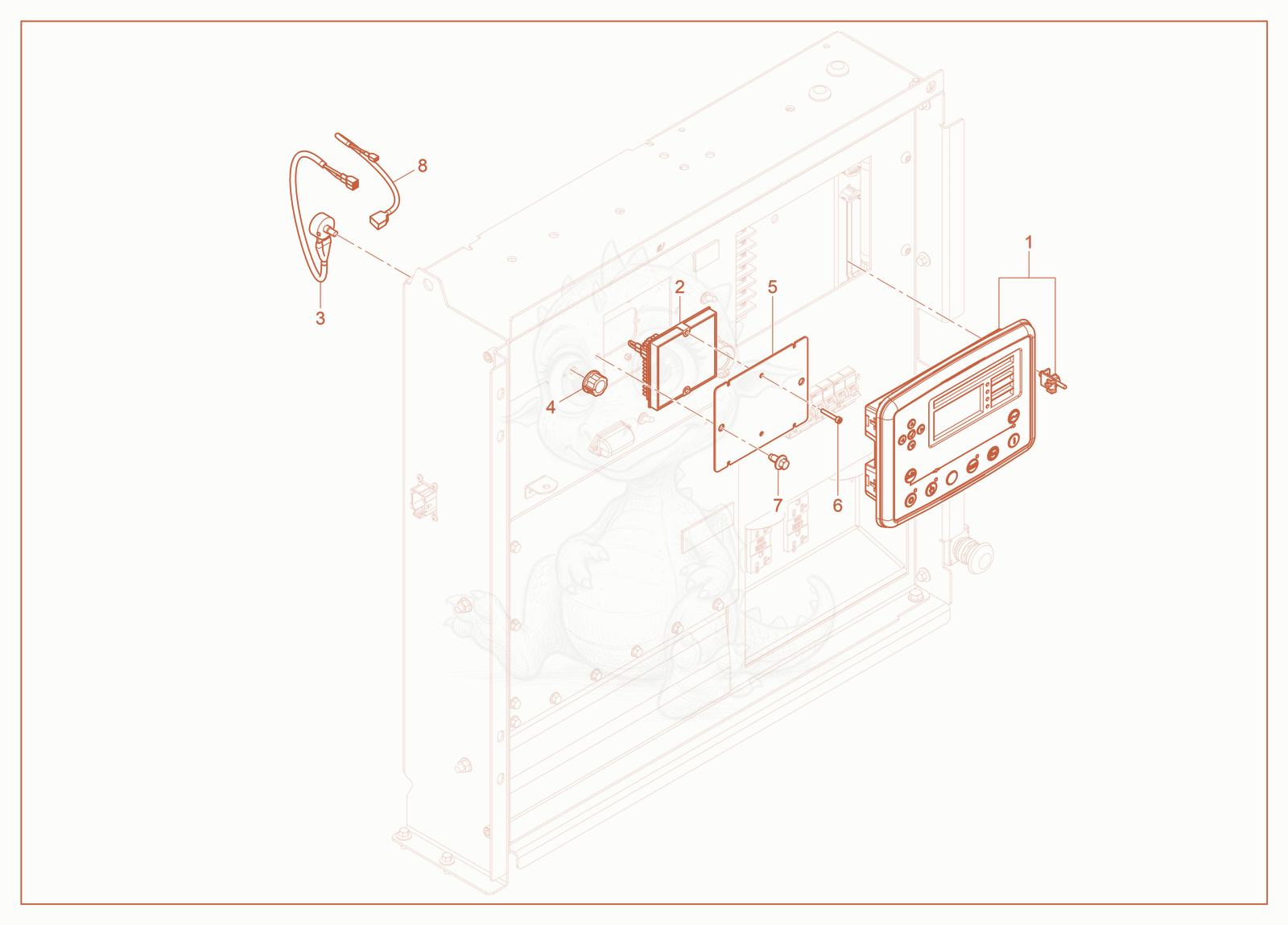

G35 Voltage Regulator/Control Module Diagram

Exploded parts diagram of the Voltage Regulator/Control Module of a Wacker Neuson G35, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100063079
    $1,815.47
    MODULE-GEN CTRL,DSE 73XXMKII,G35KDI,480V - 5100063079Unknown×1
  • 15100082284Not stocked
    MODULE GENERATOR CONTROL G35 480V×1
  • 25200013195Not stocked
    Voltage regulator×1
  • 35100041781
    $183.04
    Wiring Harness-Voltage Adj,10k Ohm POT - 5100041781×1
  • 45000183016
    $4.96
    KNOB-VOLTAGE ADJUST - 5000183016×1
  • 55100059110
    $32.74
    PLATE-AVR - 5100059110×1
  • 65000110951
    $0.03
    SCREW M4 X 20 PHIL HD - 5000110951×2
  • 75100058926
    $0.46
    SCREW-M8x16,THD.FRM,HEX.FLG.MGCT 565 - 5100058926×2
