G35

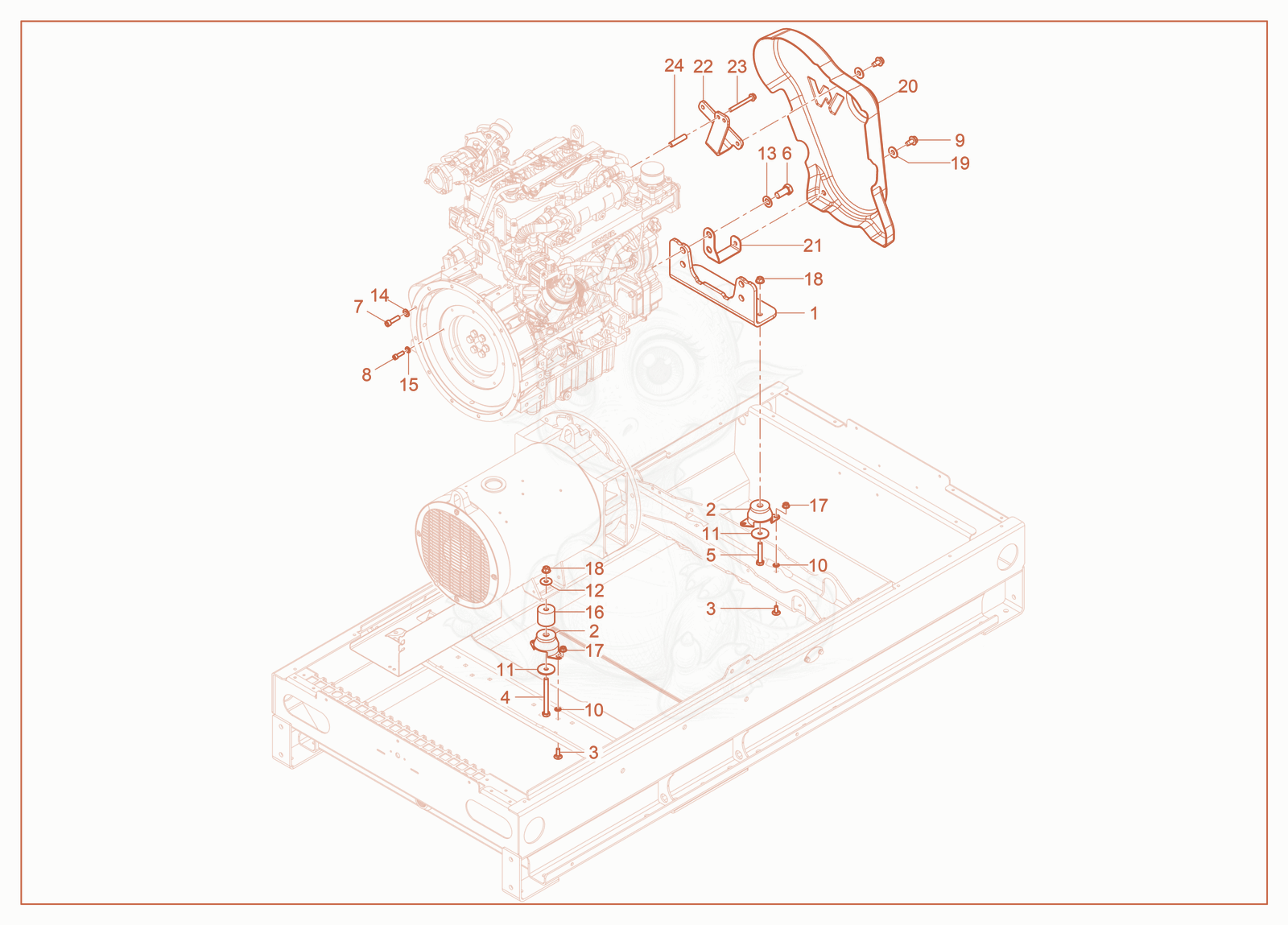

G35 Engine Bedding Diagram

Exploded parts diagram of the Engine Bedding of a Wacker Neuson G35, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100056960
    $53.26
    BRACKET-ENGINE MNT,MG,SML - 5100056960×1
  • 25100050989
    $21.25
    SHOCKMOUNT-RUBBER,450 LBS - 5100050989×4
  • 31000343297
    $0.85
    BOLT M10X25 CARRIAGE SHORT NECK 8.8 ZINC - 1000343297×8
  • 45100065725
    $4.48
    SCREW-M10x95-HEX.HD-8.8-ZNC - 5100065725×2
  • 55000011322
    $0.53
    SCREW M10 X 60 HX.HD. - 5000011322×2
  • 65100051970Not stocked
    Hexagonal head screw×4
  • 71000386452Not stocked
    Screw×12
  • 85000025588
    $0.92
    SCREW 5/16-18 X 1,SOC.HD.,MZ - 5000025588×8
  • 91000343280
    $0.44
    SCREW M10 X 20 THREAD ROLLING ZINC - 1000343280×4
  • 105200003962
    $0.23
    WASHER-M8,RETAINING - 5200003962×8
  • 115000162258
    $1.54
    WASHER-FLAT,.406X1.75X.125,ZP - 5000162258×4
  • 125000010375
    $0.18
    WASHER B10.5 FLAT - 5000010375×2
  • 135000010618
    $0.28
    WASHER B17 FLAT - 5000010618×4
  • 145000154530
    $0.29
    WASHER M10 HARDENED BLK TP 200 - 5000154530×12
  • 155000154529
    $0.03
    WASHER M8 HARDENED BLK TP 200 - 5000154529×8
  • 165100050990
    $10.09
    SPACER-40MM X 44.5MM OD X 12MM ID - 5100050990×2
  • 171000343350
    $0.18
    NUT M8 FLANGED LOCKNUT 8 ZINC - 1000343350×8
  • 181000343293
    $0.23
    NUT M10 FLANGED 10 ZINC - 1000343293×4
  • 191000343286Not stocked
    Washer×4
  • 205100058223
    $62.43
    GUARD-ENGINE,STD - 5100058223×1
  • 215100058274
    $20.83
    BRACKET-ENGINE GUARD - 5100058274×2
  • 225100060643
    $32.37
    BRACKET-UPPER ENGINE GUARD - 5100060643×1
  • 231000357133Not stocked
    Bolt×2
  • 241000447842Not stocked
    Spacer×2
