G35

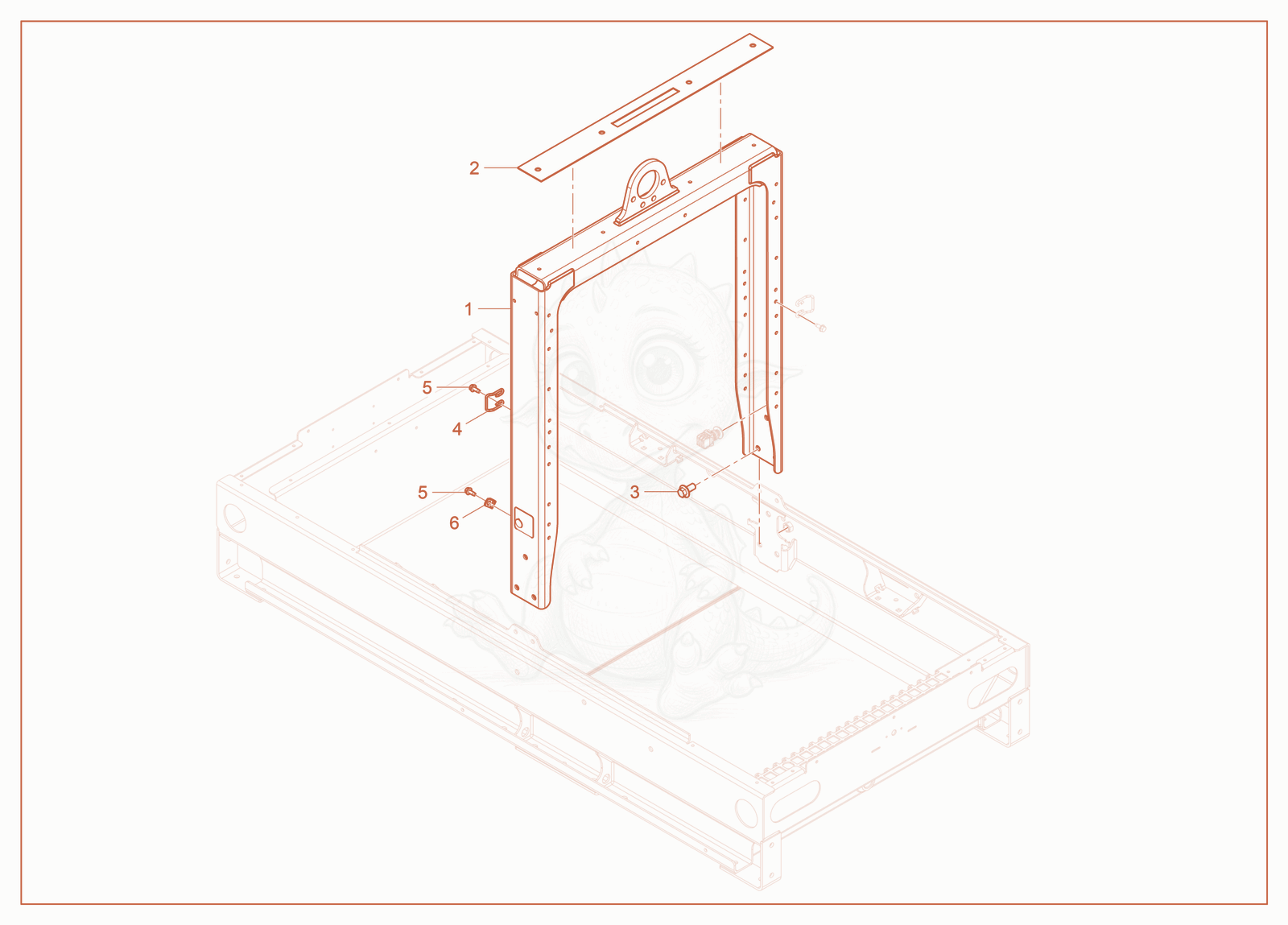

G35 Single Point Lift Diagram

Exploded parts diagram of the Single Point Lift of a Wacker Neuson G35, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100071355
    $612.08
    FRAME LIFT STRUCTURE - 5100071355×1
  • 25100056862
    $8.76
    GASKET-LIFT EYE - 5100056862×1
  • 31000343355Not stocked
    Bolt×6
  • 45000158982
    $2.54
    LATCH STRIKE,WIRE - 5000158982×4
  • 55100061318
    $0.50
    SCREW-M8x20,THD.FRM,HEX.FLG-MAG565 - 5100061318×9
  • 61000385208
    $0.67
    P-CLIP 1/2" VINYL COAT - 1000385208×1
