G35

G35 Battery Disconnect Diagram

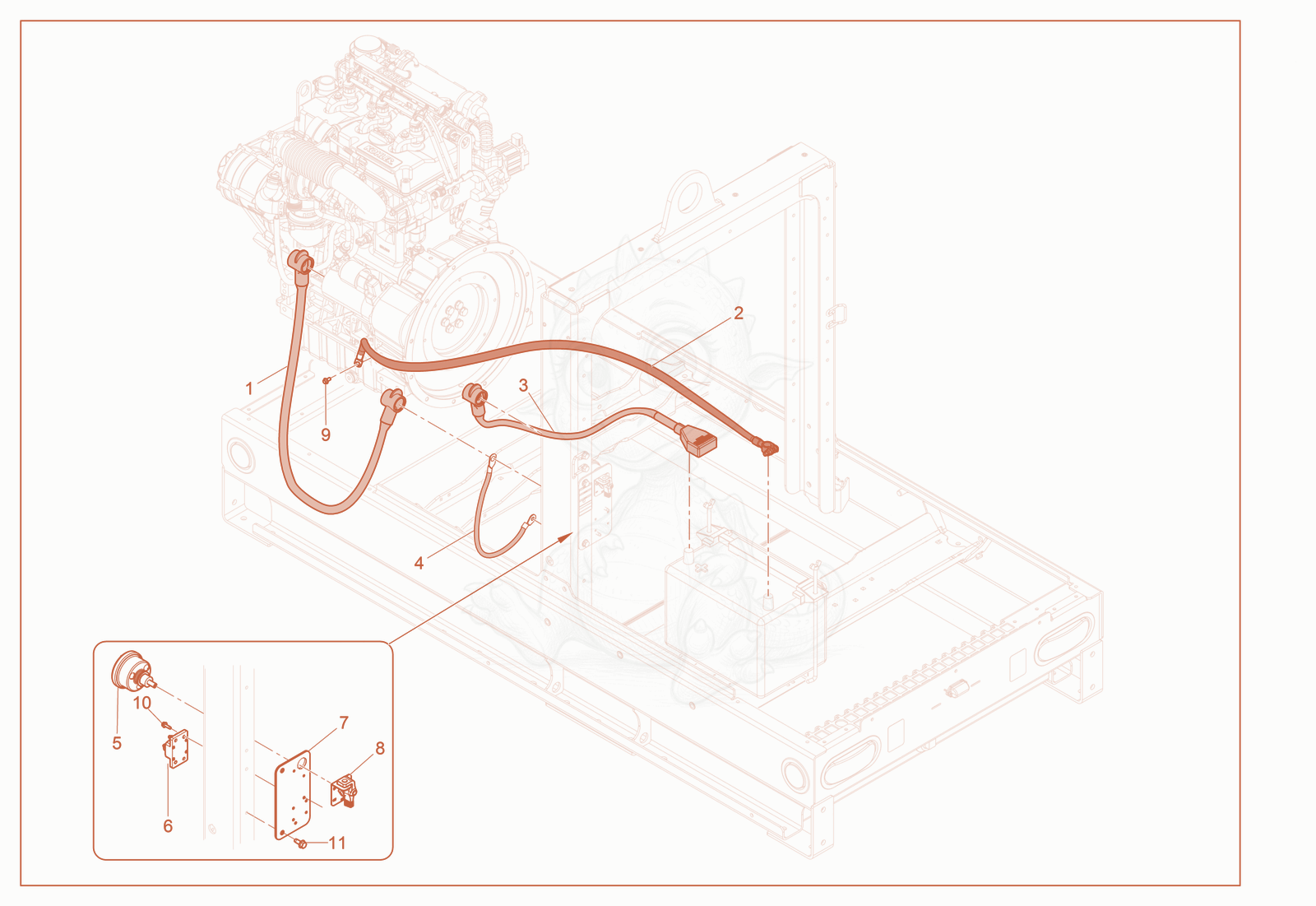

Exploded parts diagram of the Battery Disconnect of a Wacker Neuson G35, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100057693
    $28.93
    CABLE STARTER POSITIVE - 5100057693×1
  • 25100052502
    $38.36
    CABLE BATTERY NEGATIVE - 5100052502×1
  • 35100057694
    $39.67
    CABLE BATTERY POSITIVE - 5100057694×1
  • 45100058911
    $12.65
    CABLE MAIN FUSE - 5100058911×1
  • 55000173383
    $150.43
    SWITCH,LOCK-OUT - 5000173383×1
  • 65100059274
    $187.47
    BREAKER-HI-AMP,150A - 5100059274×1
  • 75100058108
    $11.16
    PLATE-BATTERY DISCONNECT,MG,SML - 5100058108×1
  • 85000173384
    $190.43
    HANDLE,LOCK-OUT LEVER - 5000173384×1
  • 91000343355Not stocked
    Bolt×1
  • 101000342814Not stocked
    Screw×2
  • 111000343480
    $2.94
    SCREW M8 X 20 THREAD ROLLING ZINC - 1000343480×2
