G35

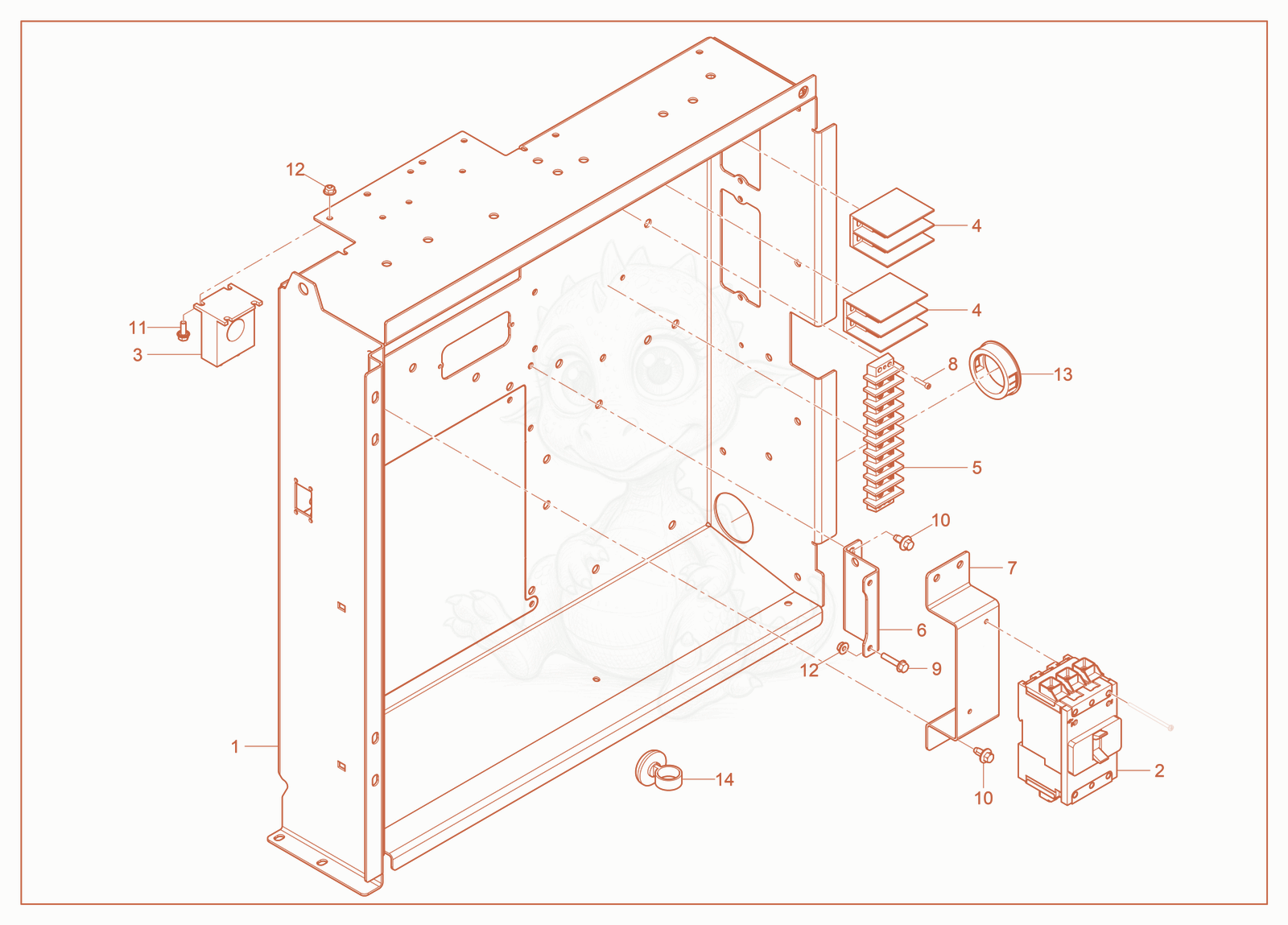

G35 Main Breaker Diagram

Exploded parts diagram of the Main Breaker of a Wacker Neuson G35, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100081498Not stocked
    WELDMENT CONTROL BOX XS×1
  • 25100052803
    $738.01
    BREAKER-SCHNEIDER,BDL36100,100 AMP - 5100052803×1
  • 35100030390
    $53.72
    TRANSFORMER-CURRENT 200:5A - 5100030390×3
  • 45000160091
    $109.20
    TERMINAL-BLOCK - 5000160091×2
  • 55000176461
    $49.94
    TERMINAL-BLOCK,10 POLE - 5000176461×1
  • 65100058050
    $155.41
    BRACKET-LUG BOX SUPPORT,MG - 5100058050×1
  • 75100058010
    $23.76
    BRACKET-BREAKER MOUNT,MG - 5100058010×1
  • 95000111218
    $1.68
    SCREW M6 X 30,HX.HD,SER - 5000111218×2
  • 105100058926
    $0.46
    SCREW-M8x16,THD.FRM,HEX.FLG.MGCT 565 - 5100058926×5
  • 115000028949
    $0.29
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×6
  • 121000343345
    $0.14
    NUT M6 FLANGED LOCK 10 ZINC - 1000343345×8
  • 135000153093
    $1.41
    BUSHING 2.500 OD X 2.000 ID - 5000153093×1
  • 141000357167
    $1.80
    TIE BUTTON - 1000357167×14
