HI1000

HI1000 Burner, NG/LP Diagram

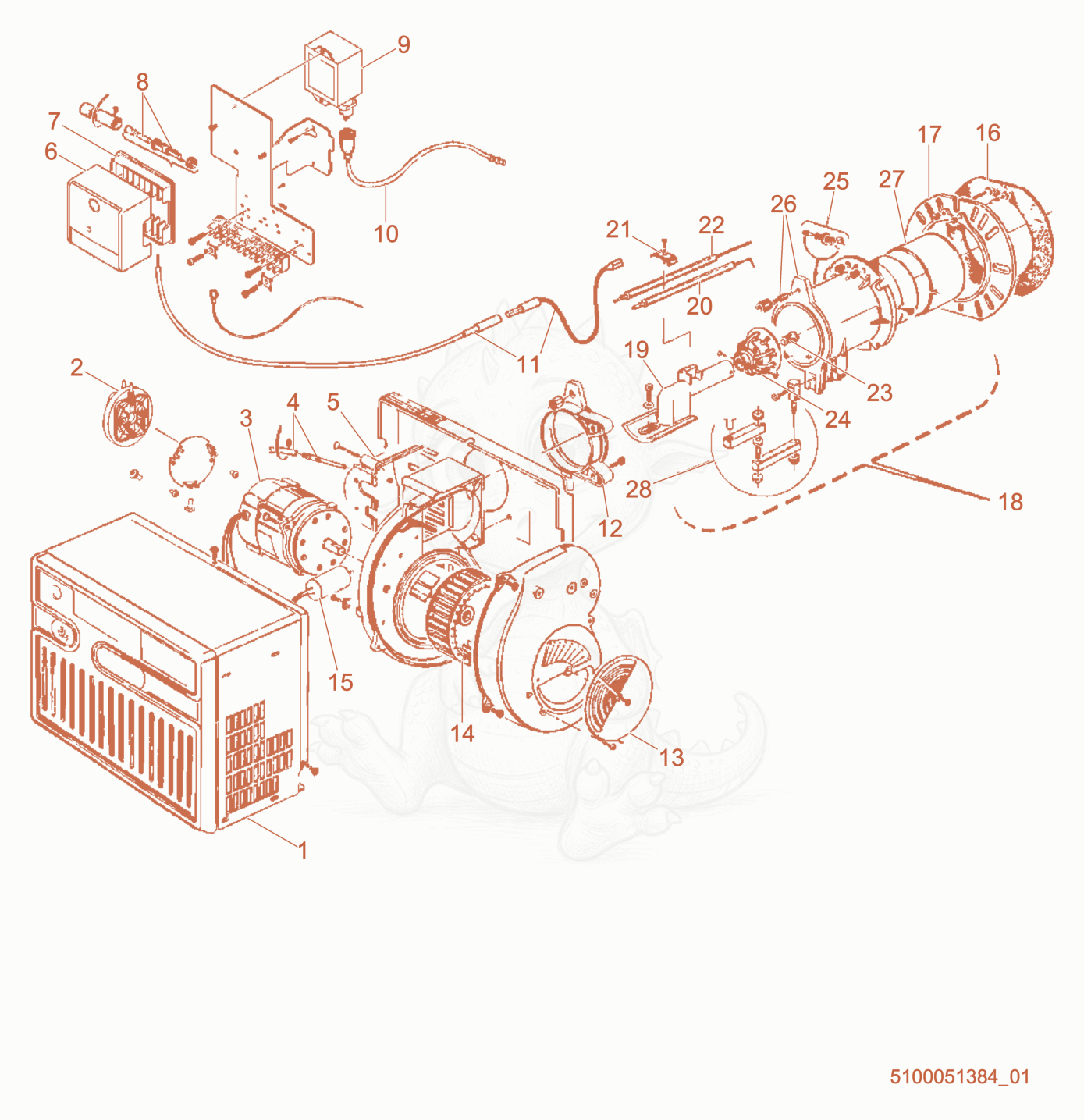

Exploded parts diagram of the Burner, NG/LP of a Wacker Neuson HI1000, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000172742Not stocked
    Cover×1
  • 25000172696Not stocked
    Switch×1
  • 35000172724Not stocked
    Motor×1
  • 45000172700Not stocked
    Tube×1
  • 55000172748Not stocked
    Plate×1
  • 65000172744Not stocked
    Control module×1
  • 75000172745Not stocked
    Burner control×1
  • 85000172743Not stocked
    Fuse×1
  • 95000172746Not stocked
    Transformer×1
  • 105000172747Not stocked
    Wire×1
  • 115000172701Not stocked
    Wire×1
  • 125000172749Not stocked
    Flange-burner×1
  • 135000172730Not stocked
    Cover×1
  • 145000172720Not stocked
    Fan×1
  • 155000172751Not stocked
    Capacitor×1
  • 165000172727Not stocked
    Gasket×1
  • 175000172726Not stocked
    Flange×1
  • 185000172752Not stocked
    Head×1
  • 195000172753Not stocked
    Tube×1
  • 205200014177Not stocked
    Electrode kit×1
  • 215000172711Not stocked
    Clamp×1
  • 225000172755Not stocked
    Element×1
  • 235000172756Not stocked
    Nozzle-NG burner×1
  • 245000172757Not stocked
    Head×1
  • 255000172717Not stocked
    Adapter×1
  • 265000172758Not stocked
    Manifold×1
  • 275000172759Not stocked
    Tube×1
  • 285000172718Not stocked
    Hinge cpl.×1
