HI1000

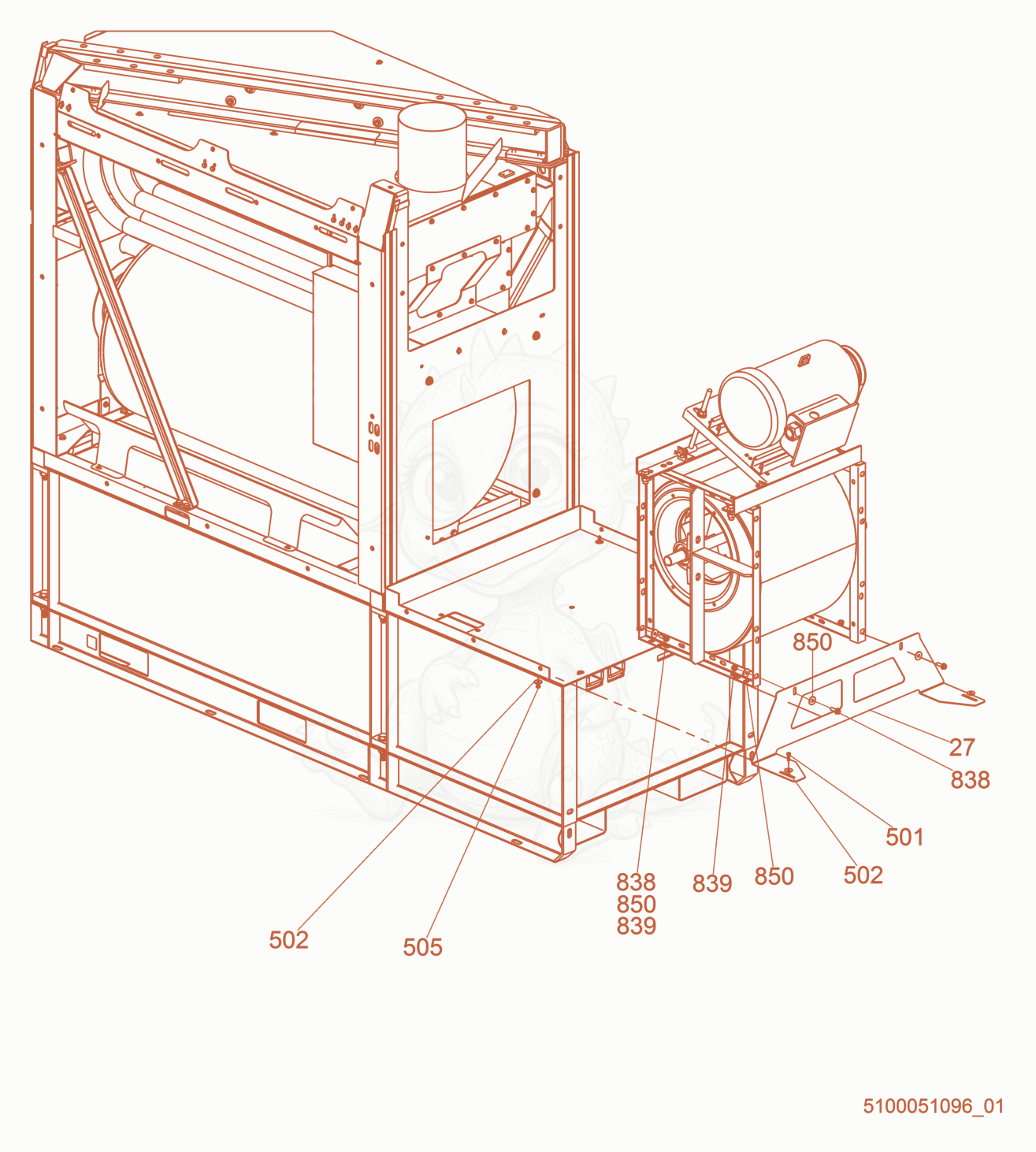

HI1000 Blower cpl. 1~ Diagram

Exploded parts diagram of the Blower cpl. 1~ of a Wacker Neuson HI1000, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 275100048247Not stocked
    Angle×1
  • 5015000189215Not stocked
    Hexagonal head cap screw×2
  • 5025000192389Not stocked
    Flat washer×4
  • 5055000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×2
  • 8385100038727Not stocked
    Bolt×6
  • 8395000115570
    $0.12
    Nut M8 Flange, Non serrated - 5000115570×6
  • 8505000110951
    $0.03
    SCREW M4 X 20 PHIL HD - 5000110951×10
