HI1000

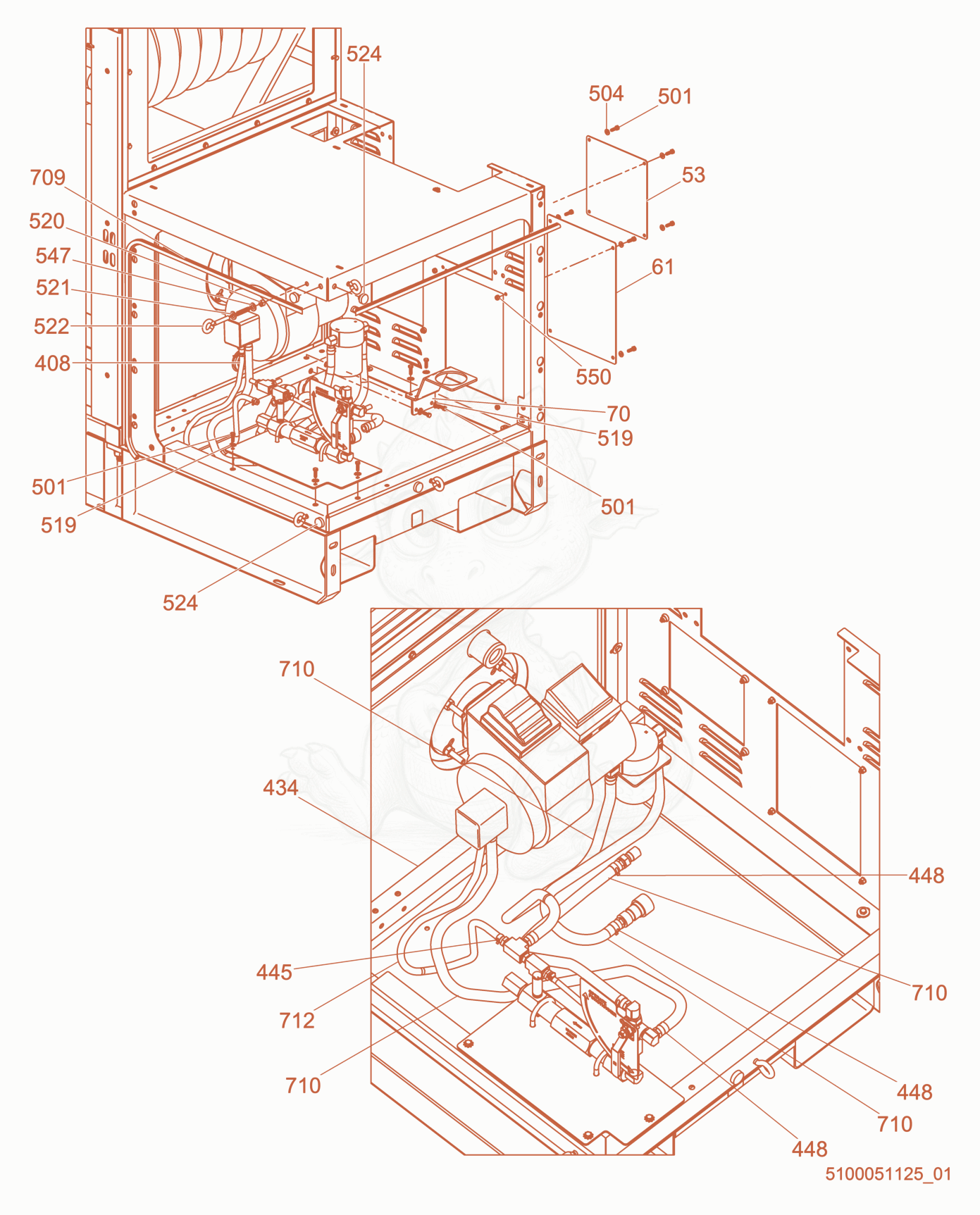

HI1000 Fuel line plumbing cpl. Diagram
- Cover Plate,Rear P-5000112006 - 5000194021×1
- PORT-FUEL FILL - 5000171136×1
- 705000173990Not stockedFilter bracket×1
- 4085000168280Not stockedHose barb×2
- 4345100025864Not stockedFuel Filter×1
- 4455000168334Not stockedClamp×1
- CLAMP-WORM,9/16X1-1/16 ,SST - 5000180084×8
- 5015000189215Not stockedHexagonal head cap screw×15
- 5195000189214Not stockedWasher×7
- 5205000167778Not stockedNut×4
- 5215000167906Not stockedSpring×4
- 5225000167907Not stockedEye bolt×4
- 5245000170416Not stockedPlug×4
- 5475000167730Not stockedFlat washer×8
- 5505000177095Not stockedHexagon nut×4
- 7105000169417Not stockedHose×4
- 7125200008916Not stockedFuel hose×3
- 8605000167728Not stockedFlat washer×8
