HI1000

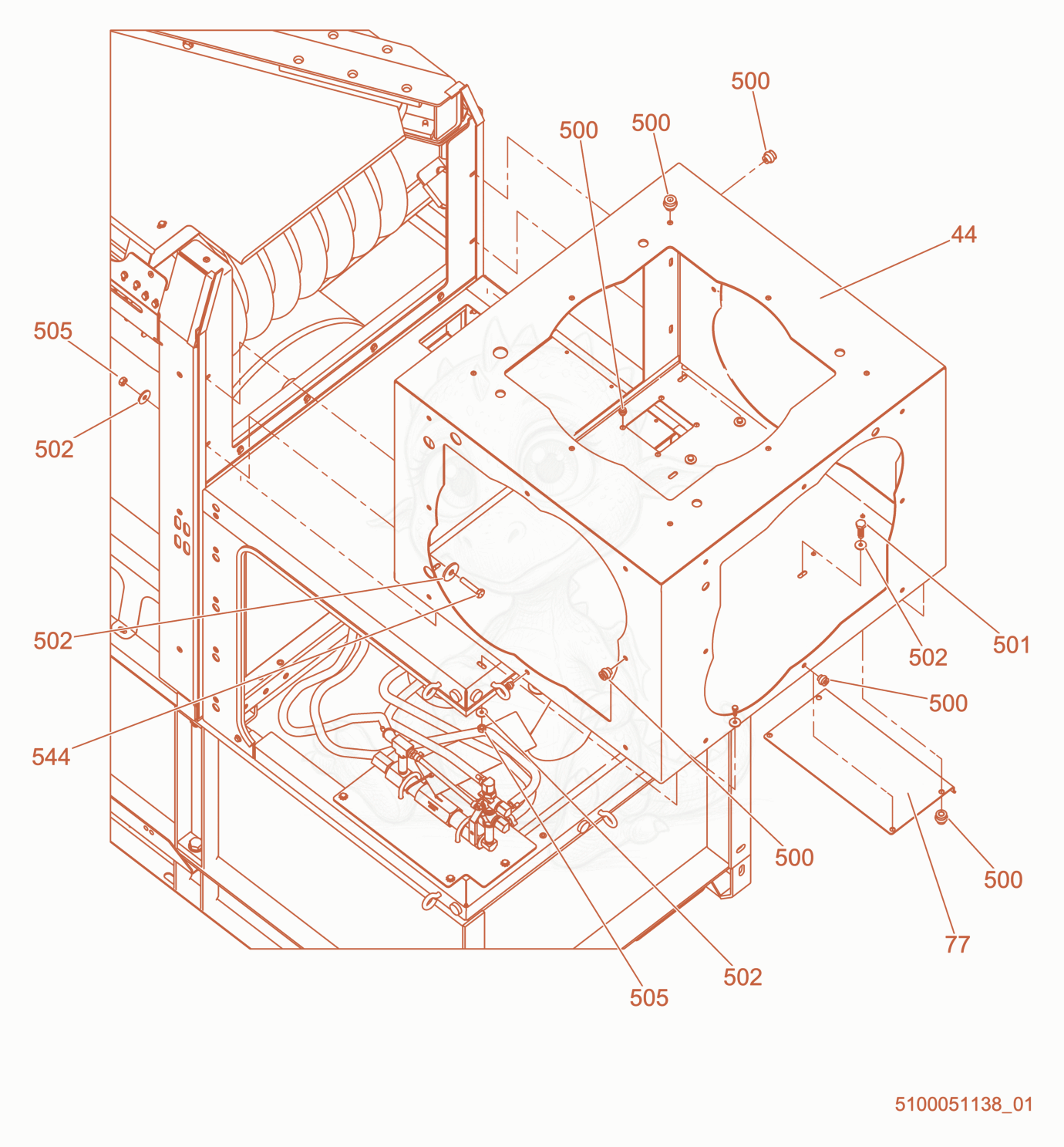

HI1000 Outlet box Diagram

Exploded parts diagram of the Outlet box of a Wacker Neuson HI1000, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 445100048398Not stocked
    BOX-OUTLET WELDMENT P-5100021100×1
  • 775100048471Not stocked
    Panel-Filler, MEC Control P-5100021100×1
  • 5005000173960Not stocked
    Nut×32
  • 5015000189215Not stocked
    Hexagonal head cap screw×10
  • 5025000192389Not stocked
    Flat washer×16
  • 5055000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×14
  • 5445000173966
    $0.11
    SCREW-M6X30,HX. HD. - 5000173966×4
