HI1000

HI1000 Heat exchanger Diagram

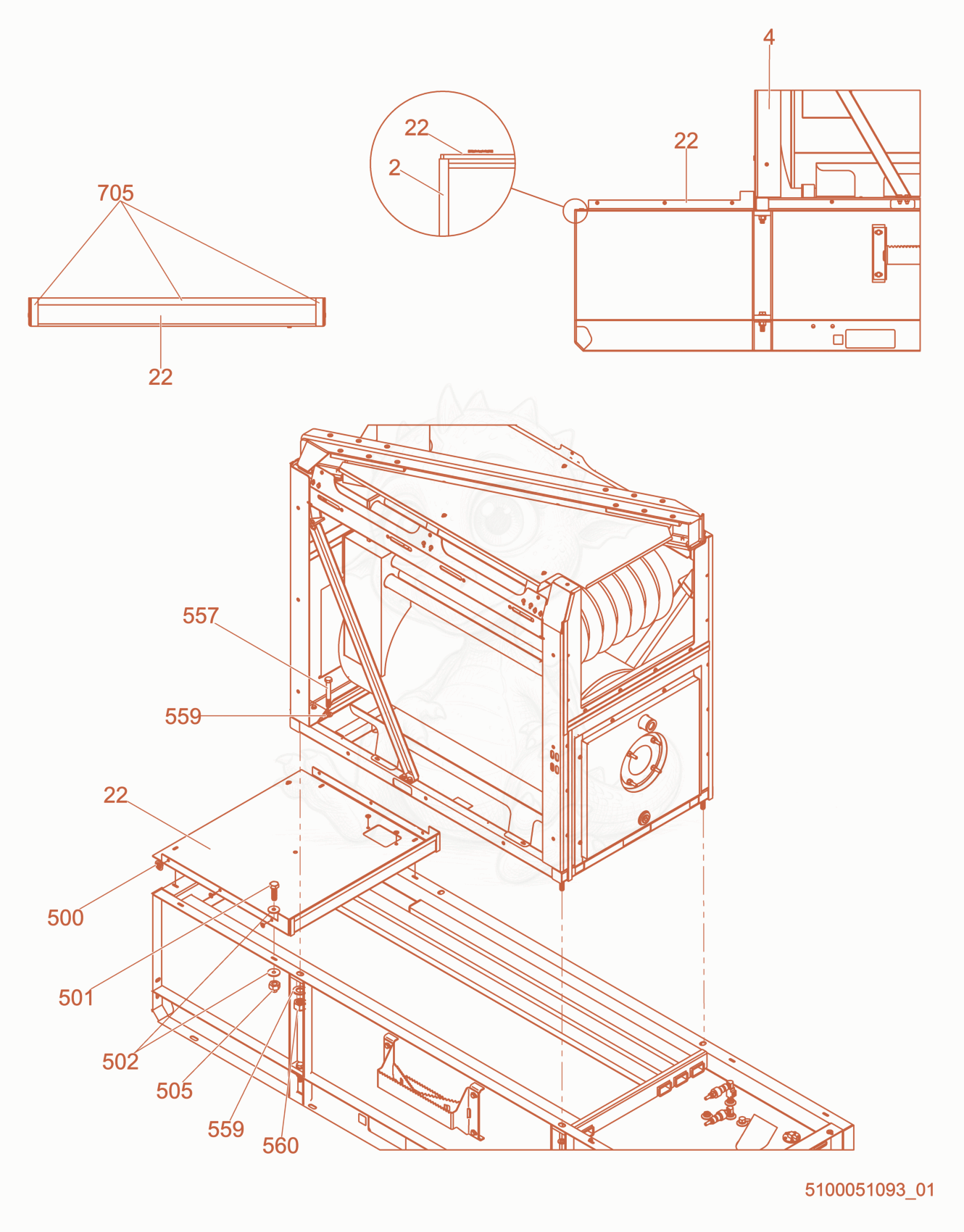

Exploded parts diagram of the Heat exchanger of a Wacker Neuson HI1000, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25200007995Not stocked
    Tank×1
  • 45100048242Not stocked
    Support bracket×1
  • 225100048441Not stocked
    Panel-Bottom P-5100021100×1
  • 5005000173960Not stocked
    Nut×9
  • 5015000189215Not stocked
    Hexagonal head cap screw×2
  • 5025000192389Not stocked
    Flat washer×4
  • 5055000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×2
  • 5575200017505Not stocked
    Screw×4
  • 5595000128369
    $0.52
    WASHER-A17 - 5000128369×9
  • 5605000013496
    $0.97
    NUT-LOCK M16 HEX. - 5000013496×4
  • 7055000161461
    $9.12
    GASKET-RUBBER 1/8 TX3/4 WX6'L - 5000161461×1
