HI1000

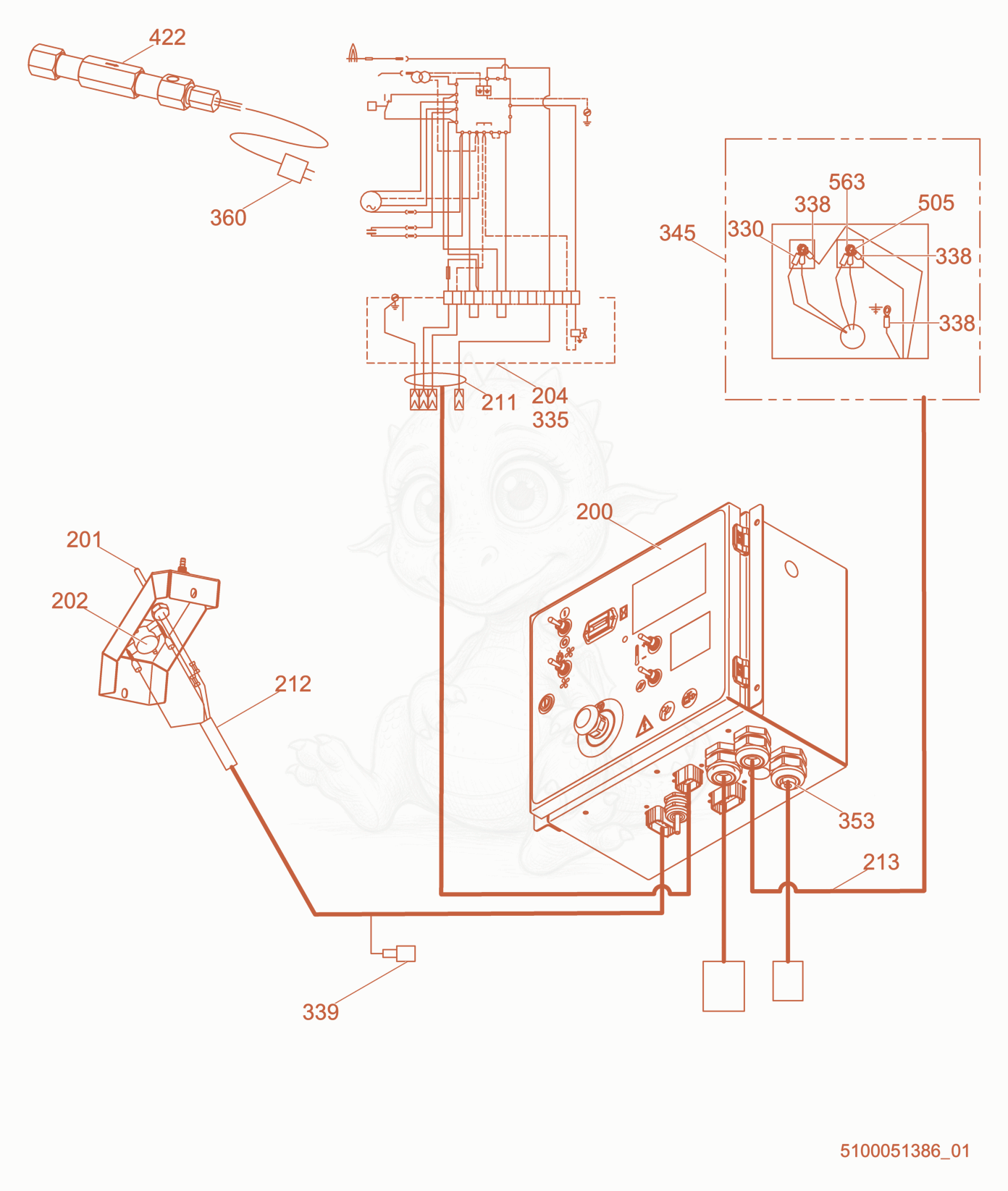

HI1000 Wiring cpl. (2) Diagram

Exploded parts diagram of the Wiring cpl. (2) of a Wacker Neuson HI1000, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2005200018601Not stocked
    Control panel×1
  • 2015200013290Not stocked
    Sensor×1
  • 2025200018610Not stocked
    Sensor×1
  • 2045200014200Not stocked
    Burner cpl. (LP/NG)×1
  • 2115100018631Not stocked
    Wiring Harness×1
  • 2125200018605Not stocked
    Wiring harness×1
  • 2135200020435Not stocked
    Cable×1
  • 3305000183789Not stocked
    Ring terminal×4
  • 3355000166473Not stocked
    Cord grip×3
  • 3385000192809
    $0.87
    TERMINAL-8 GA,5/16 IN, NON-INS - 5000192809×3
  • 3395100015319Not stocked
    Cap×1
  • 3455200021450Not stocked
    Motor×1
  • 3535000166030Not stocked
    Hose cpl.×1
  • 5055000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×2
  • 5635000073164
    $0.42
    SCREW M6 X 10,HX.HD,SER.FLG - 5000073164×2
