HI1000

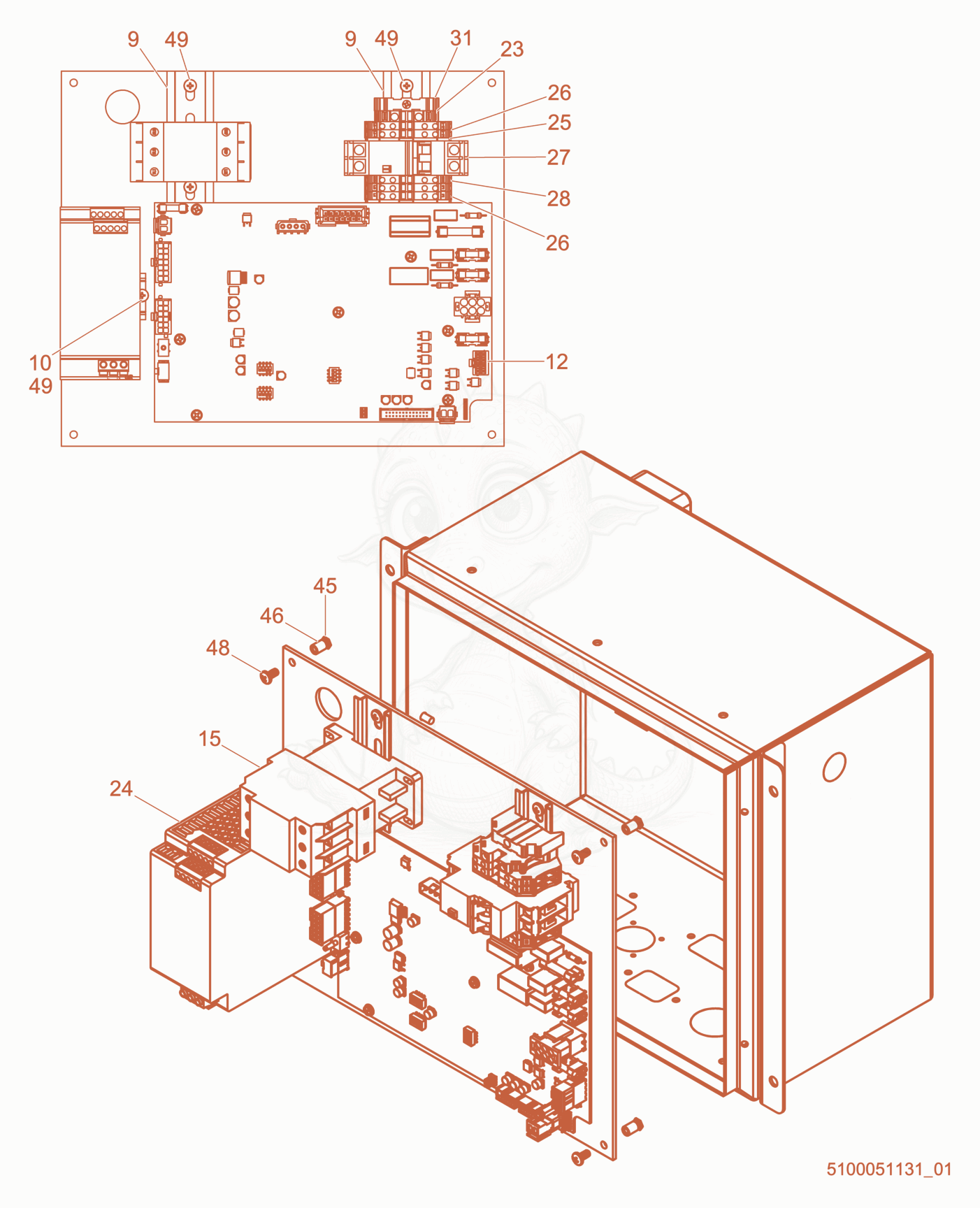

HI1000 Control Panel cpl. 1 Diagram

Exploded parts diagram of the Control Panel cpl. 1 of a Wacker Neuson HI1000, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 95200014694Not stocked
    Rail-DIN×2
  • 105200021838Not stocked
    Rail-DIN×1
  • 125200017734Not stocked
    Control board×1
  • 155200022879Not stocked
    Contactor×1
  • 235200023568Not stocked
    Screw×1
  • 245200017782Not stocked
    Power supply×1
  • 255200017793Not stocked
    Terminal block×2
  • 265200017787Not stocked
    Terminal block×4
  • 275200017784Not stocked
    Circuit breaker×1
  • 285200017789Not stocked
    Terminal block×1
  • 315200017794Not stocked
    Terminal block×1
  • 455200022438Not stocked
    Rail-DIN×4
  • 465200022439Not stocked
    Rail-DIN×4
  • 485200022440Not stocked
    Hexagon nut×4
  • 495200022441Not stocked
    Rail-DIN×6
