HI1000

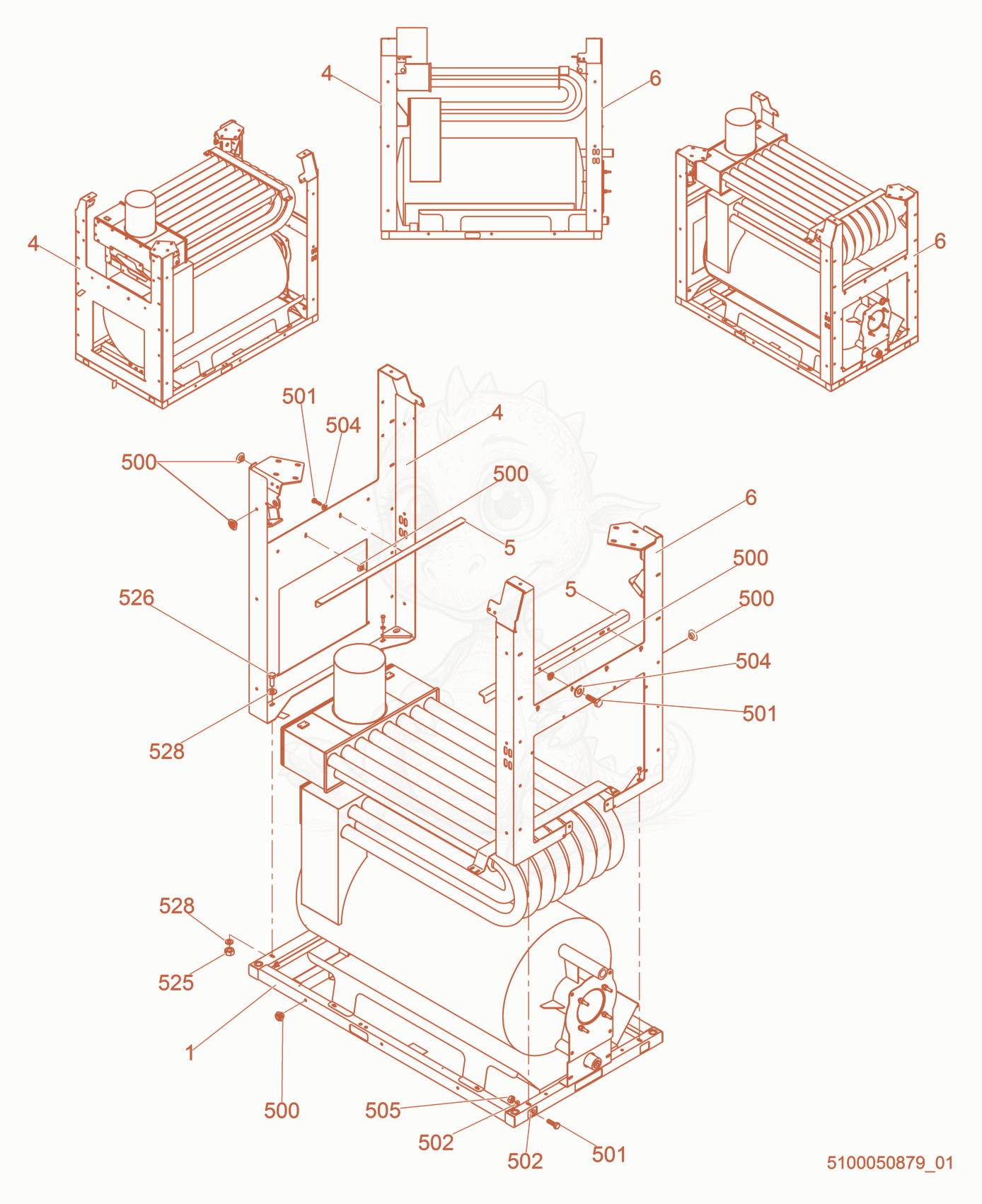

HI1000 Heater cpl. Diagram

Exploded parts diagram of the Heater cpl. of a Wacker Neuson HI1000, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 45100048242Not stocked
    Support bracket×1
  • 55100048400Not stocked
    Brace-Panel P-5100021100×2
  • 65100048243Not stocked
    Bracket-Support,Burner P-5100021100×1
  • 5005000173960Not stocked
    Nut×56
  • 5015000189215Not stocked
    Hexagonal head cap screw×10
  • 5025000192389Not stocked
    Flat washer×7
  • 5045000192393Not stocked
    Flat washer×5
  • 5055000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×4
  • 5255000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×4
  • 5265000011457
    $1.49
    SCREW M8 X 25 HX.HD. - 5000011457×4
  • 5285000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×8
